New WIA LM1800TTSY | 5-Axis or More CNC Lathes
Have one to sell?
ConditionNew
New

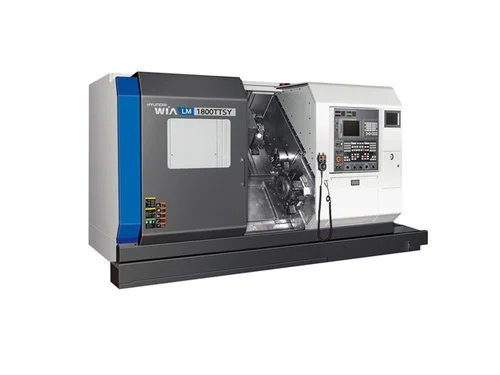

The HYUNDAI WIA LM1800 Series Multitasking Twin Spindle Turning Centers feature Y-axis controlled BMT55P turret, which enables a combination of metal removal operations, by one machine, in a single set-up. The wedge type Y-axis offers a compact, space-saving design with superior positional accuracy and is easy to program.
The HYUNDAI WIA LM1800 Series Multitasking Twin Spindle Turning Centers feature Y-axis controlled BMT55P turret, which enables a combination of metal removal operations, by one machine, in a single set-up. The wedge type Y-axis offers a compact, space-saving design with superior positional accuracy and is easy to program.
Imperial
| # Axis | 7 |
| Swing | 290 mm |
| Machining Length | 9.1" |
| Chuck Size | 8" |
| Bar Capacity | 65 mm |
| Power | 22 kW |
| Max RPM | 5,000 RPM |
| Tailstock | No |
