Ultra high speed billet sawing system with linear feed to the sawblade. This machine is unbeatable for performance with a cut finish that can eliminate the need for a second process. Cut yields a micro grain quality surface finish.
Capacity ⬤ 0.315 ~ 2.95
Capacity◼️ 0.315 ~ 2.13
Blade Speed** (fpm) 50 ~ 220
Blade Size 9.84 × 0.47 × 0.07~ 11 × 0.47 × 0.07
Motor Blade Drive (hp) 10
Motor Hydraulic Pump (hp) 2
Motor Sawhead Feed Servo (hp) 1.34 ~ 2
Motor Material Feed Servo (hp) 1.34 ~ 2
Sawhead Feed System Servo motor and ball screw
Automatic Feed Length 0.236 ~ 27.56 Single Feed
Automatic Feed Length 118 Multiple Feed
Unit= inch

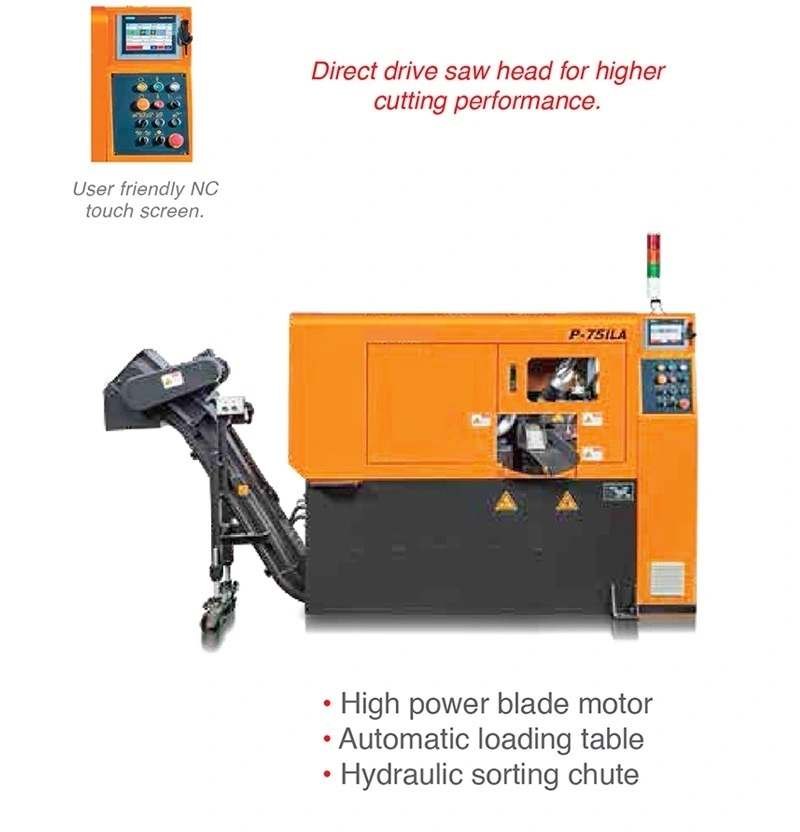

Available Models: 50ILA, 75ILA
