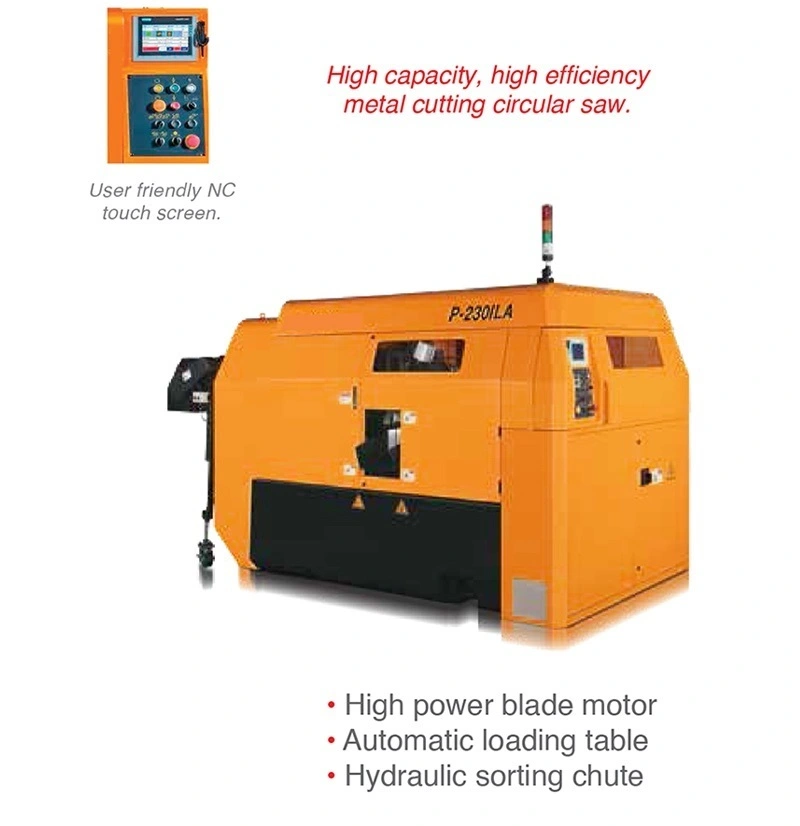

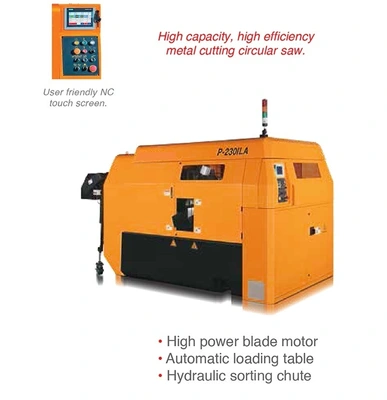

Ultra high speed billet sawing system with linear feed to the sawblade. This machine is unbeatable for performance with a cut finish that can eliminate the need for a second process. Cut yields a micro grain quality surface finish.
Capacity ⬤ 0.591 ~ 9.05
Capacity◼️ 0.591 ~ 6.4
Blade Speed** (fpm) 20 ~ 160
Blade Size 14 × 0.496 × 0.09 ~ 29.5 × 0.543 × 0.126
Motor Blade Drive (hp) 15 ~ 40
Motor Hydraulic Pump (hp) 3 ~ 5
Motor Sawhead Feed Servo (hp) 2 ~ 4.7
Motor Material Feed Servo (hp) 2 ~ 4.7
Sawhead Feed System Servo motor and ball screw
Automatic Feed Length 0.315 ~ 27.5 Single Feed
Automatic Feed Length 118 Multiple Feed
Unit= inch
Available Models: 100ILA, 150ILA, 460ILA
