MIGHTY VIPER VT 1500/500YMS

Have one to sell?
973-927-2839 x1000
sales@martechcnc.com
ConditionNew
Have one to sell?

Overview

Type:
CNC Lathes and Turning Centers
Manufacturer:
MIGHTY VIPER
Model:
VT 1500/500YMS
Condition:
Build To Order
Status:
For Sale

Description

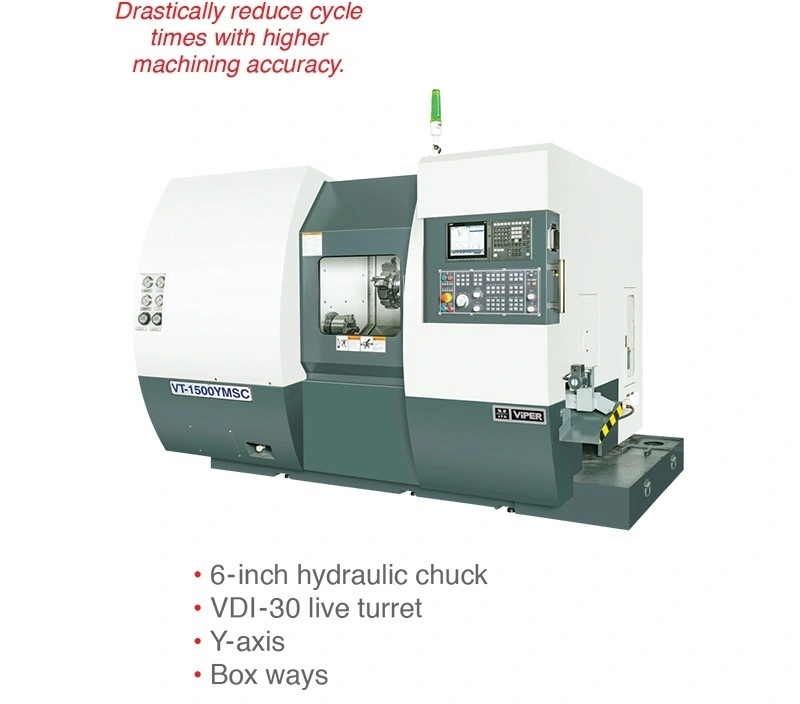

Twin spindle lathe with a Y-axis. Features main and sub spindle.12-position VDI live turret. Fast rapid rates up to 1181 ipm.

Swing13"330.2 mm
Machining Length19.7"500.38 mm
# Axis33
Chuck Size6"152.4 mm
Bar Capacity2.4"60.96 mm
Power15 hp11.2 kW
Turning Dia11.8"299.72 mm
Sub SpindleYesYes
ControlCNCCNC

Swing Over Bed 13.0
Turning Diameter Max. 11.8
Turning Length Max. 19.7
X-Travel (Main Spindle) 6.3
Y-Travel (Main Spindle) +1.6 / -1.2
Z-Travel (Main Spindle) 19.6
W-Travel (Sub Spindle) 19.6
Nose Type A2-5
Chuck Main Spindle 6
Chuck Sub Spindle 5
Through Hole 2.4
Motor Main Spindle** (hp) 15
Motor Sub Spindle** (hp) 10

Unit= inch | *Optional accessory | **30 minute rating
