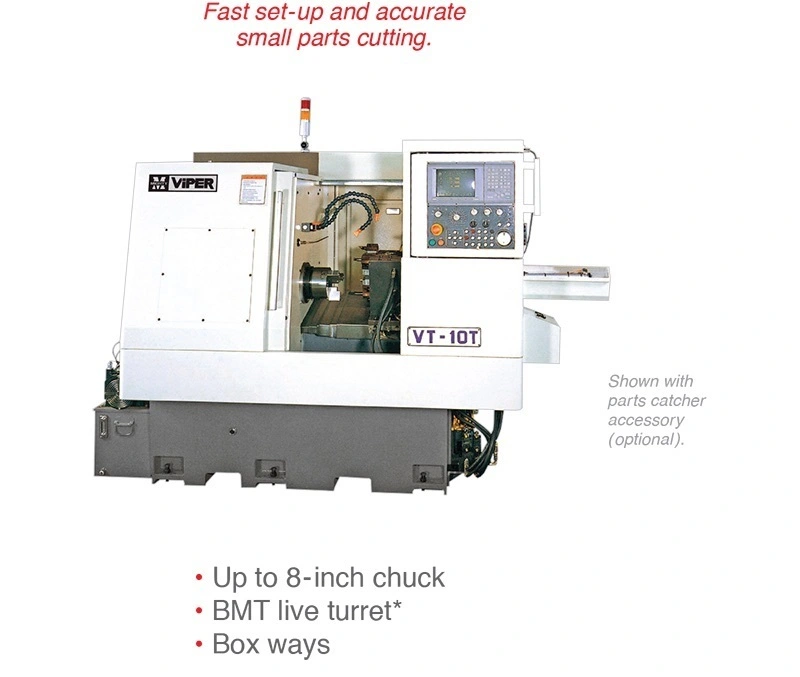

Performs accurate and fast turning of small parts. Choice of gang tooling, turret tooling or BMT live turret.
Swing Over Bed 12.6
Turning Diameter Max. 4.72
Swing Over Cross Slide 4.72
Turning Length Max. 3.54
X-Travel 8.26
Z-Travel 7.08
Nose Type A2-4
Chuck 5
Bar Capacity 1
Speed Range (rpm) 6,000
Drive Motor** (hp) 5
Turret (Type) gang
Unit= inch | *Optional accessory | **30 minute rating
