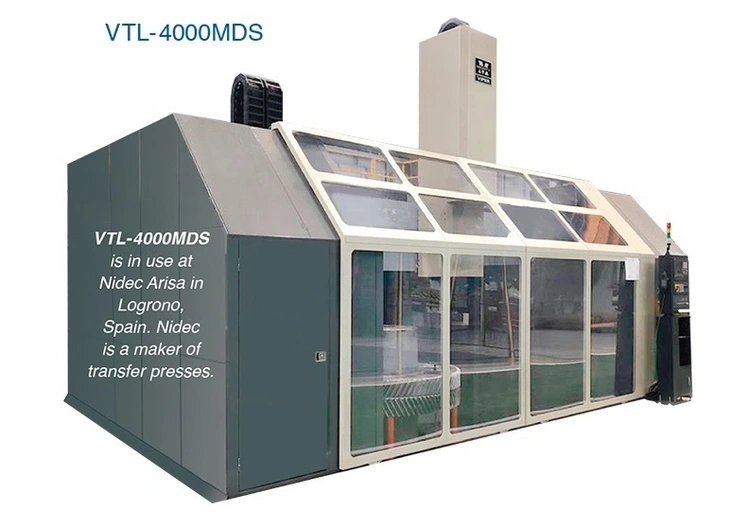

MIGHTY VIPER VTL-4000MDS Vertical Lathe Large Capacity Turning
Have one to sell?
ConditionNew
New
VTL -4000MDS Designed for large parts vertical turning with an optional milling function. Features a W-axis with dual columns, and dual ballscrews. And two spindle motors to power the work table.
Vertical Turning Accuracy and Power
Designed for heavy duty turning of large parts- the VTL is engineered for the manufacturing of parts that require high rigidity and stability. With optional milling function feature, the VTL is well suited for aerospace, power generation, and oil
field industries.
Table Diameter 118
Turning Diameter Max. 157
Swing Max. 157
Table Load Max. (lb) 66,000
X-Travel 161
Z-Travel 59
Table Speed 2-step (rpm) 80
W-Axis Crossrail Stroke 59
Crossrail Levels 9.8 x 7 levels
Main Table Motor** (hp) 60 x 2
ATC Tools 18
Unit= inch | *Optional accessory | **30 minute rating
