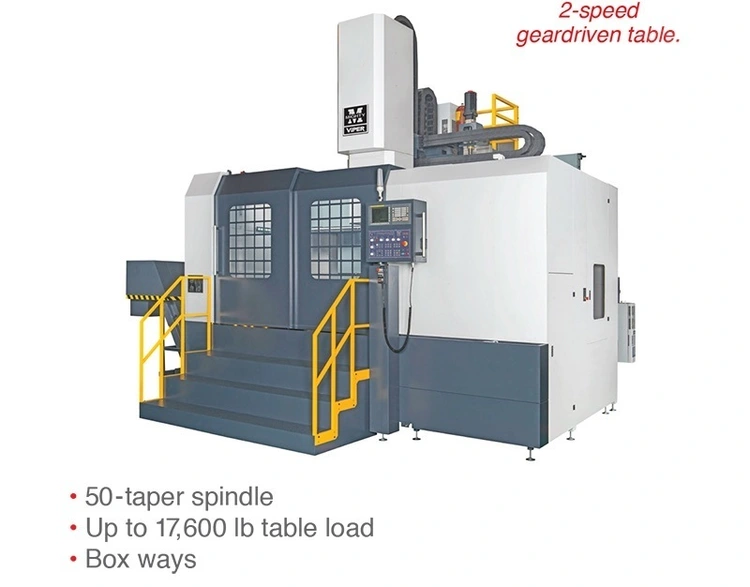

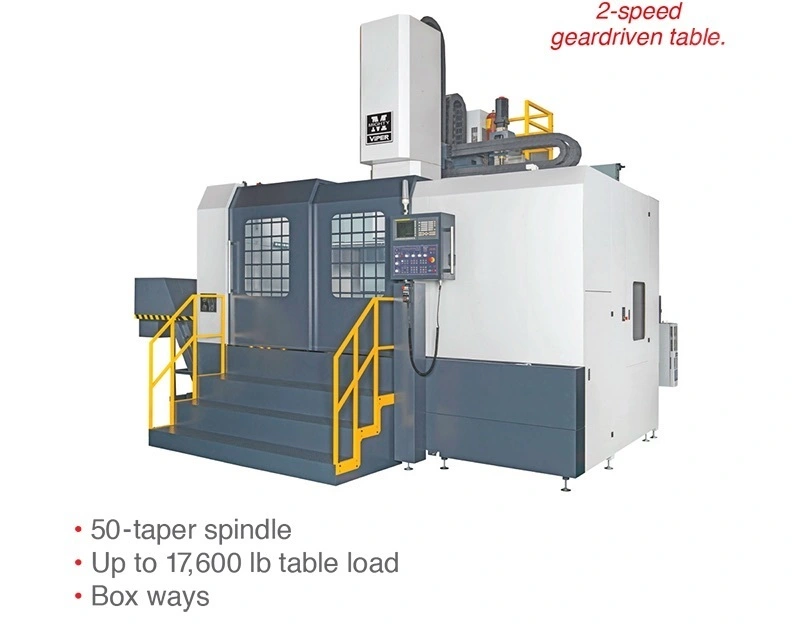

MIGHTY VIPER VTL 1600 - Vertical Lathe Large Capacity Turning
Have one to sell?
ConditionNew
New
Designed for large parts turning and features an optional milling function. The 1600 model has a geared table drive that generates powerful table torque.
Table Diameter 50
Turning Diameter Max. 63
Swing Max. 63
Table Load Max. (lb) 12,980
X-Travel 55
Z-Travel 39
Table Speed 2-step (rpm) 1~350
Crossrail Stroke 24
Crossrail Levels 7.8 x 4
Main Table Motor** (hp) 50/40
ATC Tools 18
Unit= inch | *Optional accessory | **30 minute rating
Designed for large parts turning and features an optional milling function. The 1600 model has a geared table drive that generates powerful table torque.
Imperial
| Table Dia | 50" |
| Swing | 63" |
| Work Ht-U/R | 39" |
| Power | 50 hp |
| RPM | 350 RPM |
| Weight | 12980 |
Table Diameter 50
Turning Diameter Max. 63
Swing Max. 63
Table Load Max. (lb) 12,980
X-Travel 55
Z-Travel 39
Table Speed 2-step (rpm) 1~350
Crossrail Stroke 24
Crossrail Levels 7.8 x 4
Main Table Motor** (hp) 50/40
ATC Tools 18
Unit= inch | *Optional accessory | **30 minute rating
