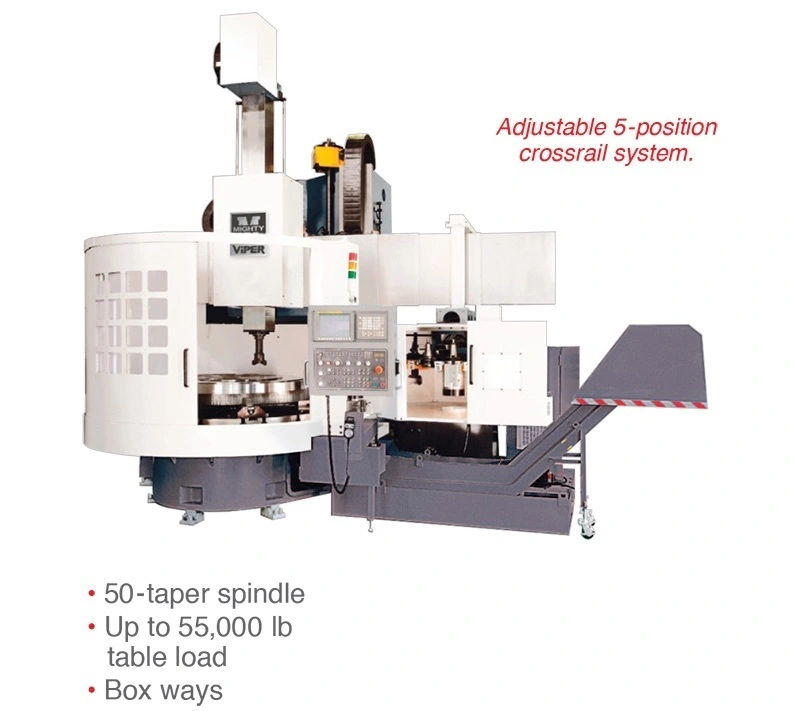

Designed for large parts turning and features an optional milling function. Specially made for handling heavy table loads.
Table Diameter 106
Turning Diameter Max. 133
Swing Max. 133
Table Load Max. (lb) 55,000
X-Travel 105
Z-Travel 39
Crossrail Stroke 39.5
Crossrail Levels inch x step 7.8 x 6
Speed Range 2-step (rpm) 1~100
Main Table Motor** (hp) 100
ATC Tools 18
Unit= inch | *Optional accessory | **30 minute rating
