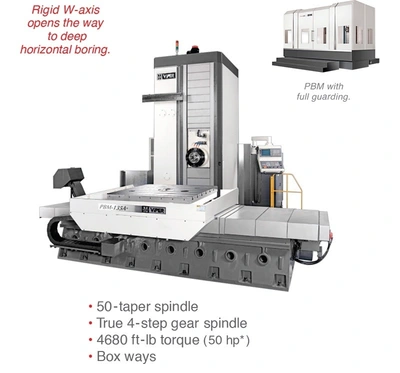

MIGHTY VIPER PBM 135B - Horizontal Milling and Boring with Quick Chip Removal
Have one to sell?
ConditionNew
New
Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
X-Travel 98
Y-Travel 75
Z-Travel 59
W-Travel 27.5
B-Axis Rapids (rpm) 2
Table Size 63×71
Quill Diameter 5.0
Nose Taper #50
Speed Gear (rpm) 2500
Drive Motor** (hp) 35 / 50*
XYZ Rapid (ipm) 394
Unit= inch | *Optional accessory | **30 minute rating
Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
Imperial
| Spindle Size | 5" |
| X-Horiz Tvl of Table | 98" |
| Y-Vert Tvl of Head | 74.8" |
| Power | 35 hp |
| RPM | 2,500 RPM |
| Table-W | 63" |
| Table-L | 71" |
| Spindle Tvl. | 59" |
X-Travel 98
Y-Travel 75
Z-Travel 59
W-Travel 27.5
B-Axis Rapids (rpm) 2
Table Size 63×71
Quill Diameter 5.0
Nose Taper #50
Speed Gear (rpm) 2500
Drive Motor** (hp) 35 / 50*
XYZ Rapid (ipm) 394
Unit= inch | *Optional accessory | **30 minute rating
