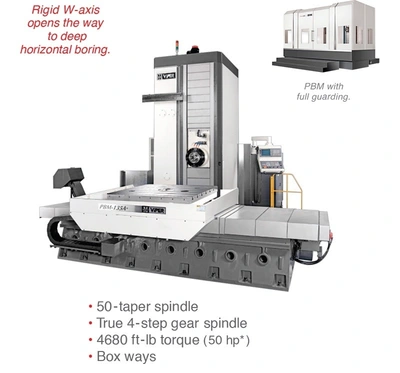

MIGHTY VIPER PBM 115 - Horizontal Milling and Boring with Quick Chip Removal
Have one to sell?
ConditionNew
New
Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
X-Travel 79
Y-Travel 63
Z-Travel 59
W-Travel 20
B-Axis Rapids (rpm) 2
Table Size 55×63
Quill Diameter 4.3
Nose Taper #50
Speed Gear (rpm) 3000
Drive Motor** (hp) 25 / 35*
XYZ Rapid (ipm) 590
Unit= inch | *Optional accessory | **30 minute rating
Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 79" |
| Y-Vert Tvl of Head | 63" |
| Power | 25 hp |
| RPM | 3,000 RPM |
| Table-W | 55" |
| Table-L | 63" |
| Spindle Tvl. | 20" |
X-Travel 79
Y-Travel 63
Z-Travel 59
W-Travel 20
B-Axis Rapids (rpm) 2
Table Size 55×63
Quill Diameter 4.3
Nose Taper #50
Speed Gear (rpm) 3000
Drive Motor** (hp) 25 / 35*
XYZ Rapid (ipm) 590
Unit= inch | *Optional accessory | **30 minute rating
