MIGHTY VIPER LRZ-U 500 Vertical Mill
Have one to sell?
ConditionNew
New

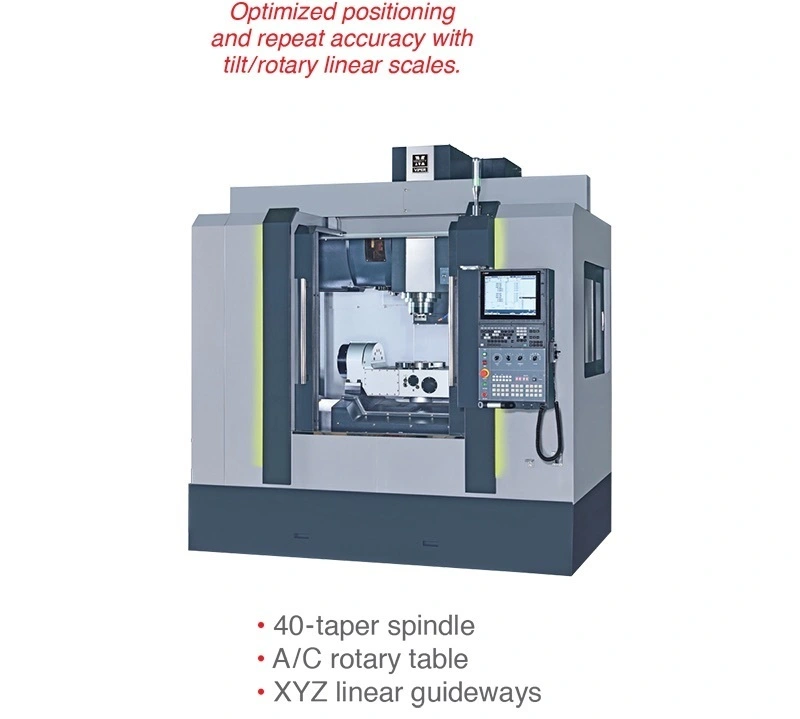

Features a rotary table that enables single setup parts machining. A/C axis rotary table offers 4+1 axis angle 5-face machining. Tilt axis and rotary axis coordinate with linear scale to ensure optimized positioning and repeatability.
X-Travel 22
Y-Travel 25
Z-Travel 24
A-Axis Tilting Range +30° ~ -120°
C-Axis Tilting Range (cont.) 360°
Nose Taper #40
Speed DDS (rpm) 12,000 / 15,000*
Speed Built-In (rpm) 20,000
Drive Motor** (hp) 10/15
CNC Control Fanuc
Unit= inch | *Optional accessory | **30 minute rating
