WFL MillTurn M30G - Special Deal of a Lifetime
Have one to sell?
ConditionNew
1 available
New
Special deal and special pricing on a STOCK WFL M30G 1800. Sub-Spindle, Lower Turret, 80 Tool ATC, Capto-C6, Call or email to request details. WFL MillTurn is the gold standard for MillTurn's Since they introduced The FIRST MillTurn to the metal-cutting industry in 1983. Since their inception, WFL has focused on developing and refining ONLY MillTurn Technology. Tough materials, tight tolerances, complex geometries, when you can't afford to miss .. WFL MillTurn is the machine of choice .. anything else is just a compromise.

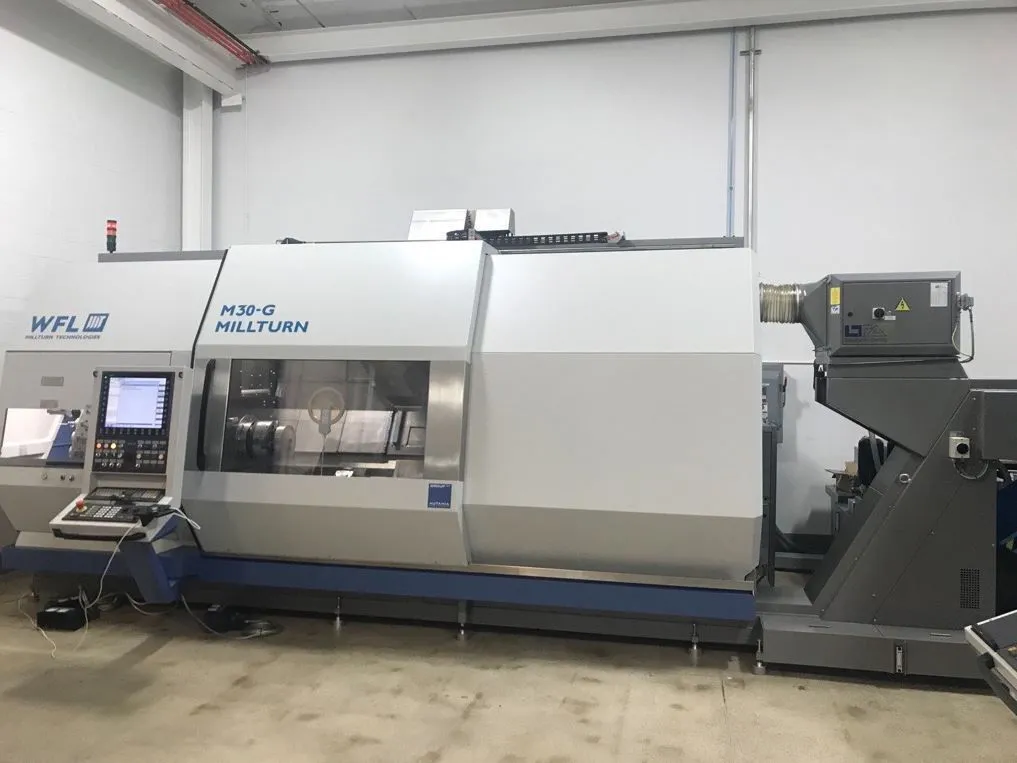

CNC-TURNING-BORING-MILLING CENTRE, M30-G MILLTURN WITH COUNTER-SPINDLE,
BOTTOM SLIDE AND CONTROL SINUMERIK 840D SL
WORKING RANGE *=Option
center distance mm 1800
max. turning diameter mm 520
Z-axis travel mm 1500
Z2-axis travel mm *1355
X-axis travel mm 600
X2-axis travel mm *230
TURNING SPINDLE LEFT//RIGHT L // R
spindle head according to DIN 55026 A8 // A8
spindle diameter in front bearing mm 160 //160
spindle bore mm 86 // 86
MAIN DRIVE LEFT//RIGHT
Built in motor L // R
drive power 40%(100%) DC kW 44(32)// 44(32)
speed range RPM 0-4000// 0-4000
max. torque 40%(100%) DC Nm 840(610)//840(610)
C-AXIS L// R
smallest programmable increment deg 0,0001// 0,0001
speed range RPM 0-100 // 0-100
max. torque 40%(100%) DC Nm 840(610)//840(610)
clamping torque with disk brake Nm 2000// 2000
TURNING SPINDLE RIGHT
AC-servodrive
feed force Z4-axis kN 7
rapid traverse: Z4-axis m/min 40
TURNING-BORING-MILLING-UNIT (TBM-unit)
(single tool holder)
drive power 40%(100%) DC kW 20(15)
speed max. RPM *6000/9000/*12000
max. torque 40%(100%) DC Nm *250(190)/165(125)/*125(95)
max. B-axis torque not indexed Nm 900
max. B-axis holding torque indexed Nm 5000
Y-axis travel mm 250[-100...+150]
B-axis swiveling range deg +/-110
tool system HSK-A63 *C6
spindle diameter in front bearing mm 80
Temperature stabilization of the TBM-unit by a closed loop
cooling system with a compressor cooling unit.
FEED DRIVES
feed force Z-axis 100% DC kN 10
feed force X-axis 100% DC kN 10
feed force Y-axis 100% DC kN 12
rapid traverse: Z-axis m/min 40
X-axis m/min 30
Y-axis m/min 15
B-axis deg/s 138
BALL SCREW SPINDLES
Z/Z2-axis mm 50x20/*50x20
X/X2-axis mm 50x16/*40x10
Bottom cross slide:*
feed force Z2-axis kN *6
feed force X2-axis kN *5
rapid traverse: Z2-axis m/min *40
X2-axis m/min *10
max. turning dia. mm *400
compound slide bottom *
12-fold disc *
tool holder accommodation size *VDI 40 - radial
drive power 100% duty cycle kW *10
torque 100% duty cycle Nm *63
speed max. min-1 *4000
tool-clutch Pr DIN 5480-W20x0,8
TOOL MAGAZINE
tool places (coded) 80
max. tool diameter, adjacent place free mm 160
adjacent place occupied mm 90
max. length of tool mm 450
max. weight of tool kg 15
max. tilting torque in the gripper slot Nm 20
DIMENSIONS
length (incl. tool magazine and chip conveyor) m 8,3
width/height m 4,0/3,25
weight total t 15...20
ELECTRIC CONNECTION DATA
connection power kW/kVA 105/110
operating voltage V/cps 3x400/50
connection power - light cable kW 1
operating voltage - light cable V/cps 230/50
The short circuit power at machine power connection point
according to EN 50178 is minimum 5,6 MVA.
The machine can be connected directly to the customer´s 3 phase power
| 80 Tool ATC |
| Auto Door |
| Bottom Compound Slide and Lower Turret |
| Chip Conveyor |
| Coolant Gun |
| Counter Spindle |
| LED Work Lights |
| Linear Scales |
| Oil Skimmer |
| Tool Management Function |
| Visi-Port Window |
