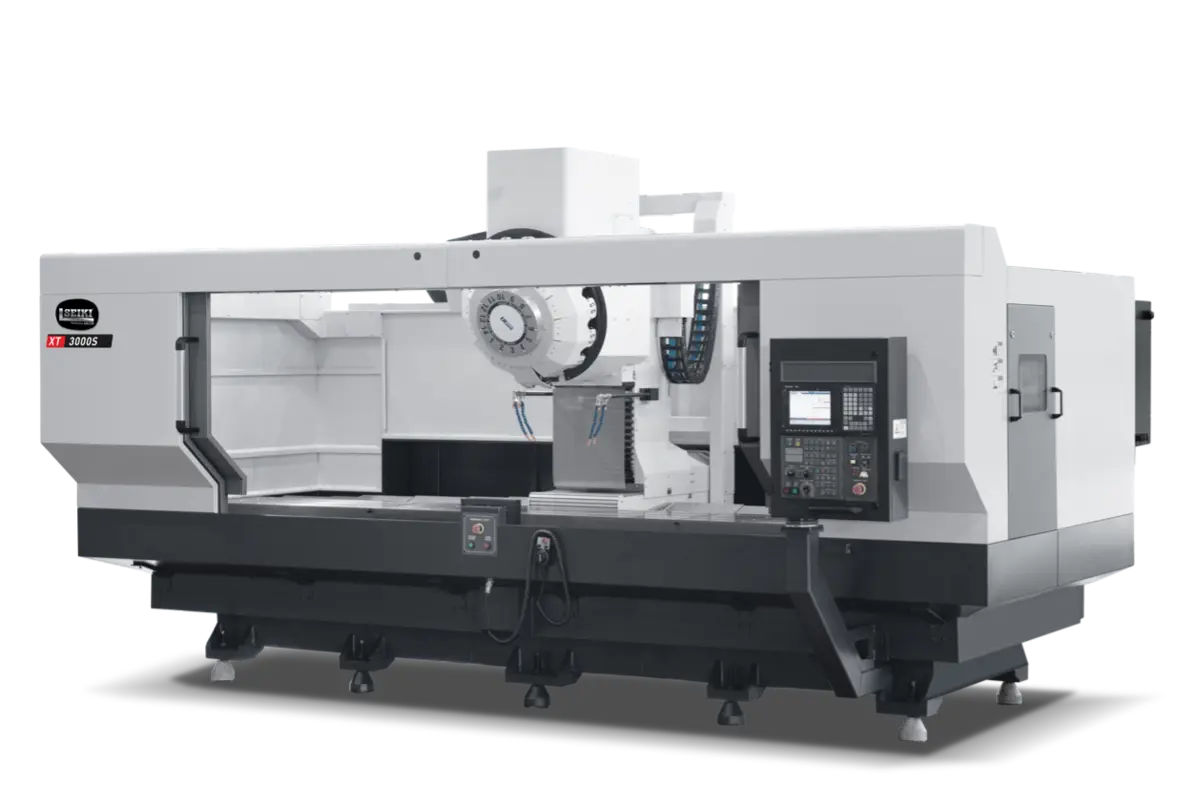

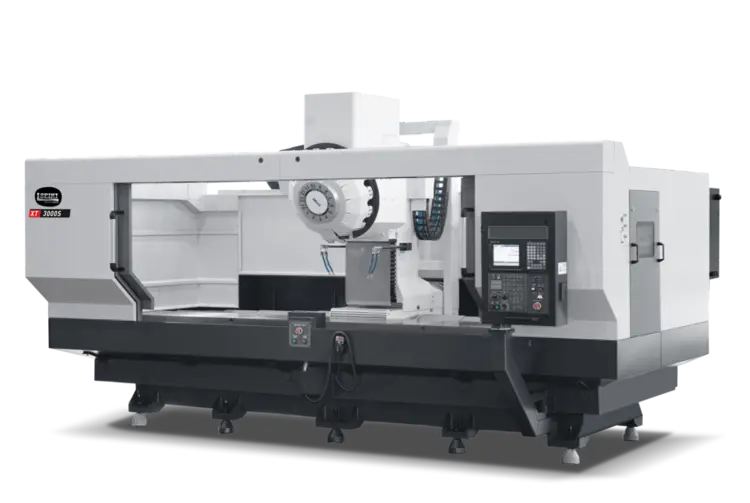

New - Build-To-Order SEIKI XT-3000 | Vertical Machining Centers

Travels
Longitudinal Travel (X) Axis 118.1"
Cross Travel (Y) Axis 16.5"
Vertical Travel (Z) Axis 13.8"
Table to Spindle 9.8" min/23.6" max
Spindle Center to Column 19.05"

Table
Table Working Surface 129.9" x 18.1"
Maximum Workload on Table 1320 LBS.
Table Surface Ground / T-slotted / Tapped
No. of T-slots x Width 3 x 14mm
Table height from floor 34.8”

Spindle (Standard)
Spindle Motor 7.4HP 30 min / 5 HP continuous
Spindle Taper BBT-30 dual contact
Spindle Drive System Direct Drive
Spindle Speed 0-15000 RPM

Spindle (Optional high speed)
Spindle Motor 7.4HP 30 min / 5 HP continuous
Spindle Taper BBT-30 dual contact
Spindle Drive System Direct Drive
Spindle Speed 0-24000 RPM

Spindle (Optional high torque)
Spindle Motor 10HP 30 min / 7.4 HP continuous
Spindle Taper BBT-30 dual contact
Spindle Drive System Direct Drive
Spindle Speed 0-12000 RPM

Automatic Tool Changer – Turret Type (Standard)
Number of Tools 14 tools
Tool Selection Bi-directional-fixed
Tool Change Time 1.4 sec tool to tool
Chip to Chip Time 2.2 sec chip to chip
Magazine Index Time Adjacent Station 0.1 seconds
Magazine Index Time 180 degrees 1.8 seconds
Maximum Tool Diameter 3.15"
Maximum Tool Weight 4.8 LBS
Tool Type BBT-30
Maximum Tool Length 7.9"

Machine Specifications Continue Next Page
 

Ballscrews and Axis Motors
X-Y-Z Ballscrew Diameter x pitch X 55mm (2.17”) x 20mm, Y 32mm (1.26”) x 20mm,
Z 32mm (1.26”) x 16mm
Ballscrew Type Class 3 double nut pre-loaded
Ballscrew Mounting Type Double anchored
X-Y-Z Servo Motor HP 6.0 - 3.0 – 3.0HP
Servo Motor Mounting Direct coupled

Feeds
Rapid Traverse Rate X,Y,Z 787, 1890, 1969 IPM
Acceleration in Z 1.0G
Cutting Feed Rate 0.01 - 787 IPM
Positioning Accuracy +/- .0002" full stroke
Repeatability +/- .00015"

General
Coolant Tank Capacity 100 gallons approx..
Machine Weight 15,400 LBS
Floor Space (without optional chip conveyor) 186" x 107" x 101"
Machine Power Source 208/220 Volts, 3 Phase 35KVA**
Air Source 90 PSI
