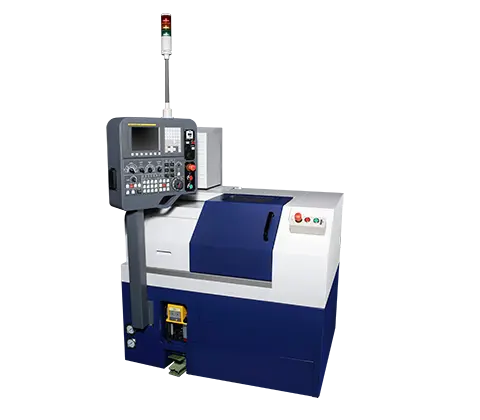

Horizontal CNC Lathe
Have one to sell?
ConditionNew
New
Small compact gang type lathe, requiring small floor space
Can be complemented with an automation solution to reduce non-cutting time
Various gang tool pedestal options
Can choose to use mechanical arms and storage mechanisms according to the processed workpiece's shape
Suitable for mass producing component parts
Symmetrical machine structure design to reduce thermal displacement
Chuck O.D. 5" (4") inch
Bar capacity Ø26 mm
X/Z axis travel 220/220 mm
X/Z axis rapid traverse 30/30 m/min
Spindle nose A2-4
Spindle speed 6,000 (8,000) rpm
Spindle motor 7.5/5.5/3.7 kW
Tool capacity 2-5 pc
