ConditionNew
New

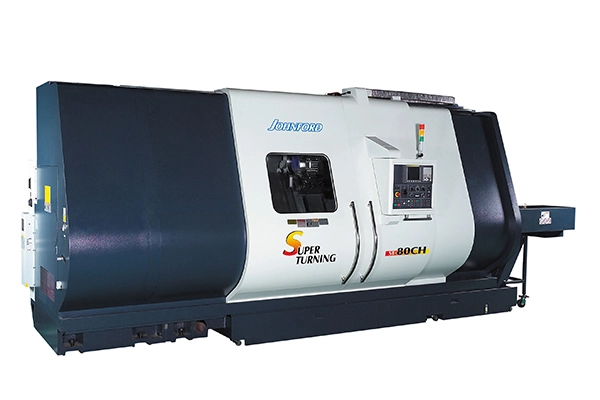

Johnford ST Series horizontal turning centers feature a one piece, 60˚ slant-bed torque tube design. The torque tube, or hole cast through the center of the slant bed, maximizes rigidity and dissipates heat. For optimum strength and accuracy, the machines are cast from rigid Meehanite iron.
Swing over the bed for the 28-machine series ranges from 31″ (533 mm) to 47.2 ” (1,199 mm). Swings over the cross slide are 23.6″ (600 mm) to 39.4″ (1,000 mm). Distance between centers begins at 40″ (1,016 mm) and is 400″ (10,160 mm) on the largest machine.
ITEM / MODEL ST-160H
Swing Over Bed (in.) 39.4
Swing Over Cross Slide (in.) 31.5
Center Distance (in.) 160
Spindle Types A,B,C,D,E,F,G,H,I,J
Turret Tool Capacity 12
Spindle HP 35 – 60
Spindle Drive 2/4 Speed Gear Box
C Axis Optional
Y Axis Optional
Sub Spindle Optional
Twin Turrets Optional – Hex
Weight (lbs.) 51,200
Complete coolant system
Splash guards
Built-in work light
Hydraulic 20″ chuck
Soft jaws
Workpiece counter
1 set of instruction manuals
Chip conveyor
Spindle orientation
Hydraulic, programmable tailstock body and quill
