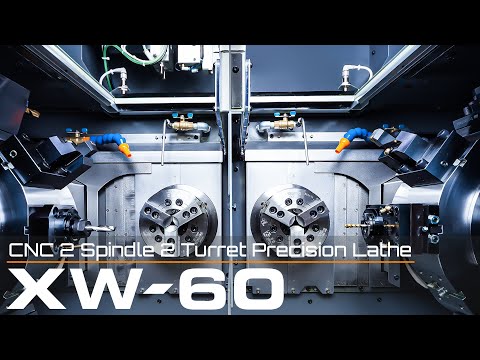

New TAKAMAZ XW-60 | CNC Lathes and Turning Centers
Have one to sell?
ConditionNew
New
A 6-inch mid size machine offering high productivity through space savings, compound machining and high-speed automation
Space savings in production lines
Due to the turret and slide structure, the width of the machine with the loader transfer has been cut to 1,595 mm, the smallest in the class. (25% smaller than existing models) This reduces the workpiece transfer distance from the machine to peripheral devices, allowing the width of the production line to be reduced.
Shorter machining cycles
A 7.5/5.5 kW spindle motor is installed, and the increased power reduces spindle acceleration/deceleration times. (Comparison with previous models: Acceleration/deceleration time reduced 22% with max. speed of 4,500 min-1)
Chuck size Collet, 6 (5 Opt.) × 2
Spindle
- Spindle bearing I.D. φ75（φ65 Opt.)
- Spindle speed Max. 4,500 (6,000 Opt.)
Tool post
- Type 8-station turret × 2
- Max.stroke X:125, Z:140
- Rapid traverse rate X:21, Z:18
Power tools
- Tool storage capacity -
- Rotation speed -
- Capabilities -
Spindle motor AC7.5 / 5.5 × 2
W × L 1,595 (1,950 ※) × 2,005
Controller TAKAMAZ & FANUC 0i-TF
