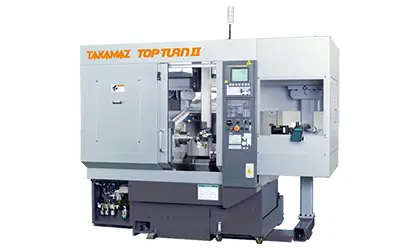

Most basic gang type lathe With high-speed ″ΣGH Loader″
Have one to sell?
ConditionNew
New
Improved and Enhanced Functions
The control system has been updated to incorporate the most up-to-date functions in the standard specifications for improved working efficiency.
High-Speed "ΣGH Loader" Mounted (Optional)
The new, high-speed gantry-type "ΣGH loader" with a rapid traverse rate of 155 m/min for the travel axis and 125m/min to reduce the cycle time.
A-type B-type
Chuck size Collet, 6 Collet, 8 inch
Spindle
- Spindle bearing I.D. φ75 φ85 mm
Spindle speed Max. 6,000 Max. 4,500 min-1
Tool post
- Type Gang type
- Max.stroke X:300, Z:300 mm
- Rapid traverse rate X:12, Z:18 m/min
Spindle motor AC7.5 / 5.5 kW
W × L 1,820 × 1,510 mm
Controller TAKAMAZ & FANUC 0i-TD
