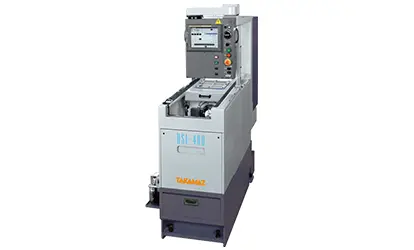

The upgraded model of the ″USL-300″, the definitive slim lathe
Have one to sell?
ConditionNew
New
Space savings
Four standard tools can be mounted. The machine width of 480 mm is realized while securing an X-axis stroke of 160 mm. With the 2-unit linked specification, the dimension of each line in the width direction is halved.
Production lines are made more efficient and simpler, it is easy to have a lot of units, and lines can be constructed flexibly.
In pursuit of high-precision cutting
The built-in spindle with "zero-center design" lessens the relative displacement of the spindle unit and achieves greater cutting accuracy.
Chuck size Collet, 3 inch
Spindle
- Spindle bearing I.D. φ50 mm
- Spindle speed Max. 10,000 ※ min-1
Tool post
- Type Gang type (Four tools)
- Max.stroke X:160, Z:200 mm
- Rapid traverse rate X:12, Z:15 m/min
Speendle motor AC5.5 / 3.7 kW
W × L 480 × 1,941 mm
Controller TAKAMAZ & FANUC 0i-TD
