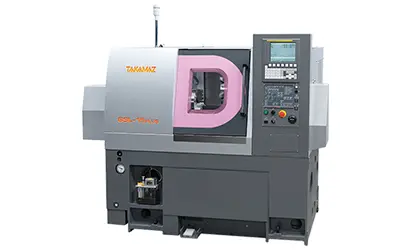

Designed for high quality and endurance
We have called on the technical knowhow on lathes that we have built up over many years, and adopted a spindle unit with the same bore diameter of 100 mm that has proven itself on our flagship model (XL-150). The machine will maintain endurance even in working environments outside Japan and minimize changes in finish dimensions if operating over long periods.
Simultaneous attainment of low costs and high reliability
Simplifying the structure realizes low costs and provides differ entiation from existing machines. What is more, high reliability is maintained because, from parts to assembly, manufacture is completely done in Japan while achieving low costs.
Without tailstock With tailstock
Chuck size Collet, 8 inch
Spindle
- Spindle bearing I.D. φ100 mm
- Spindle speed Max. 3,500 min-1
Tool post
- Type 8-station Turret
- Max.stroke X:175, Z:330 X:160, Z:330 mm
- Rapid traverse rate X:18, Z:24 m/min
Spindle motor AC7.5 / 5.5 kW
W × L 1,875 (With tailstock: 1,990) × 1,680 mm
Controller TAKAMAZ & FANUC 0i-TF
