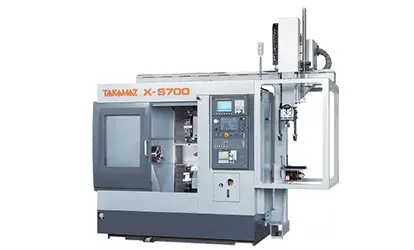

Simultaneously achieves high rigidity and compactness Ultimate shaft work machine
Have one to sell?
ConditionNew
New
Ideal machine construction for shaft work
The unique 1-spindle 2-turret and servo-controlled tailstock configuration dramatically improves shaft work productivity. The X-axis stroke is set to max. 115 mm. Crankshafts up to 700 mm long can also be handled. (Some restrictions apply)
Increased productivity with high efficiency machining
The cycle time is shortened by balance cutting with symmetrical twin turrets, and simultaneous left/right individual machining. Added to that, adoption of a 10-station turret gives leeway in the tool layout.
A-type B-type
Chuck size Collet, 8 Collet, 8 (10 Opt.) inch
Spindle
- Spindle bearing I.D. φ100 φ120 mm
- Spindle speed Max. 3,500 Max. 3,500 (3,000 Opt.) min-1
Tool post
- Type 10角タレット×2
- Max.stroke X:115, Z:650 mm
- Rapid traverse rate X:16, Z:30 m/min
Spindle motor AC15 / 11 AC15 / 11 (18.5 / 15 Opt.) kW
W × L 1,960 × 1,720 mm
Controller TAKAMAZ & FANUC 0i-TD
