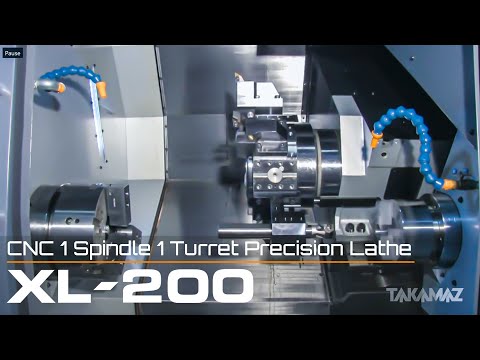

Can handle long shaft work Heavy cutting + various compound machining
Have one to sell?
ConditionNew
New
Loader workpiece machining capability with Z-axis stroke extension
The standard Z-axis stroke specification is increased by about 40% from 550mm to 800mm.It can handle long shaft workpieces of up to 720mm, and provides a wide range of machining capability.
Reduction of idle time by mounting a tailstock driven by a servo unit
The hydraulic type driven tailstock on the standard machine is replaced with a servo driven type that is controlled with the change in the cutting program resulting to having a capability to handle different types of workpiece with significant reduction in cycle time.
Standard type Power tool type
Chuck size Collet, 8（10 Opt.） inch
Spindle
- Spindle bearing I.D. φ100（φ120 Opt.） mm
- Spindle speed Max. 3,500 (5,000・4,000 Opt.) min-1
Tool post
- Type 12-station turret
- Max.stroke X:225, Z:800 mm
- Rapid traverse rate X:18, Z:24 m/min
Power tools
- Tool storage capacity - 12 pcs.
- Rotation speed - 4,000 min-1
- Capabilities - φ20 M4~M16 mm
Spindle motor AC11 / 7.5 (18.5 / 15 Opt.) kW
W × L 2,900 × 1,845 mm
Controller TAKAMAZ & FANUC 0i-TD
