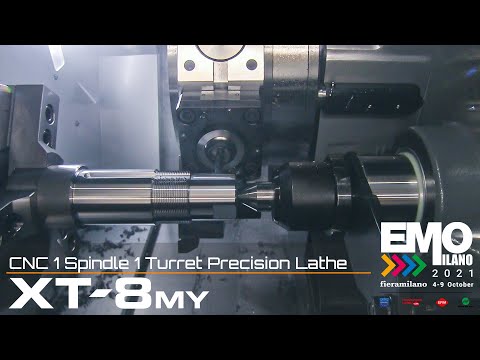

Compact compound-machining lathe with Y-axis for superior performance

Description

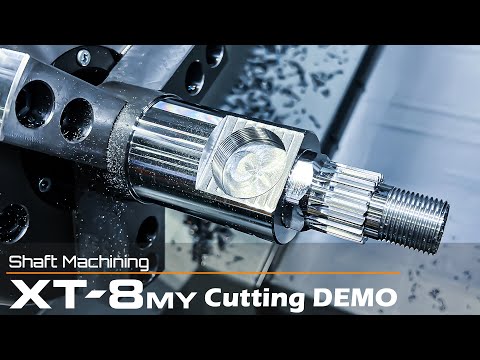

Long shaft machining for lengths up to 300 mm in the smallest space in its class

Supports machining of long shafts up to 300 mm in length. Square slideways are adopted on all axes to give a highly rigid structure.
While a tailstock specification can also be selected, we have achieved the smallest floor space in its class, being about 20% smaller than our competitors.

High power tool performance (BMT turret)

The milling unit with a motor output of AC 5.5/3.7/2.2 kW and a maximum tool size of φ20 mm improves productivity.
The turret uses the bolt mount system (BMT55), which can shorten the setup time. In addition, the turret half-indexing mechanism allows up to 24 tools to be mounted, also reducing set-up time (up to 12 power tools can be mounted).
