Versatile Tooling Layout for Multi-tasking on One Machine
Have one to sell?
ConditionNew
New
Supports a wide range of workpiece layouts
Responding to needs toward existing machines, a large through-hole spindle specification (φ120) has been added as an option. By enlarging the through-hole, handling of large-diameter bar material is supported.

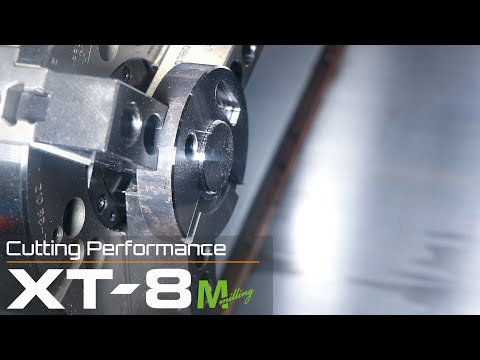

High power tool performance (BMT turret)
The milling unit with a motor output of AC 5.5/3.7/2.2 kW and a maximum tool size of φ20 mm improves productivity.
The turret uses the bolt mount system (BMT55), which can shorten the setup time. In addition, the turret half-indexing mechanism allows up to 24 tools to be mounted, also reducing set-up time (up to 12 power tools can be mounted).
Chuck size Collet, 8 inch
Spindle
- Spindle bearing I.D. φ100 (φ120 Opt.) mm
- Spindle speed Max. 3,500 (5,000・3,000 Opt.) min-1
Tool post
- Type 12-station Turret
- Max.stroke X:190, Z:420 mm
- Rapid traverse rate X:18, Z:24 m/min
Power tools
- Tool storage capacity 12 pcs.
- Rotation speed 4,000 min-1
- Capabilities φ20 M16 mm
Spindle motor
- AC11/7.5:φ100 3,500min -1
- (AC15/11:φ100 5,000min -1 Opt.)
- (AC15/11:φ120 3,000min -1 Opt.) kW
W × L 1,750×1,535 mm
Controller TAKAMAZ & FANUC 0i-TF Plus
