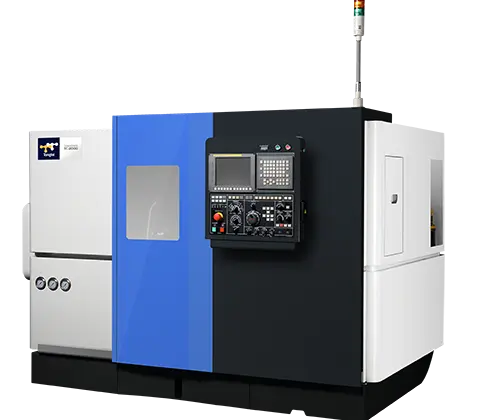

Horizontal CNC Lathe
Have one to sell?
ConditionNew
New
Structure is designed with finite element analysis, enhancing dynamic rigidity and stability
High efficiency turning capability and C-axis design that satisfied the machining demand of milling and turning
Servo driven turret allows for quick tool changing, reducing non-cutting time
Excellent cost performance value
Chuck O.D. 8" inch
Bar capacity Ø51 mm
X/Z axis travel 170[200]/400 mm
X/Z axis rapid traverse 30/30 m/min
Spindle nose A2-6
Spindle speed 4,500 (3,000) rpm
Spindle motor 18.5/15/11 kW
Tool capacity 12 (8) [VDI-40：12] pc
