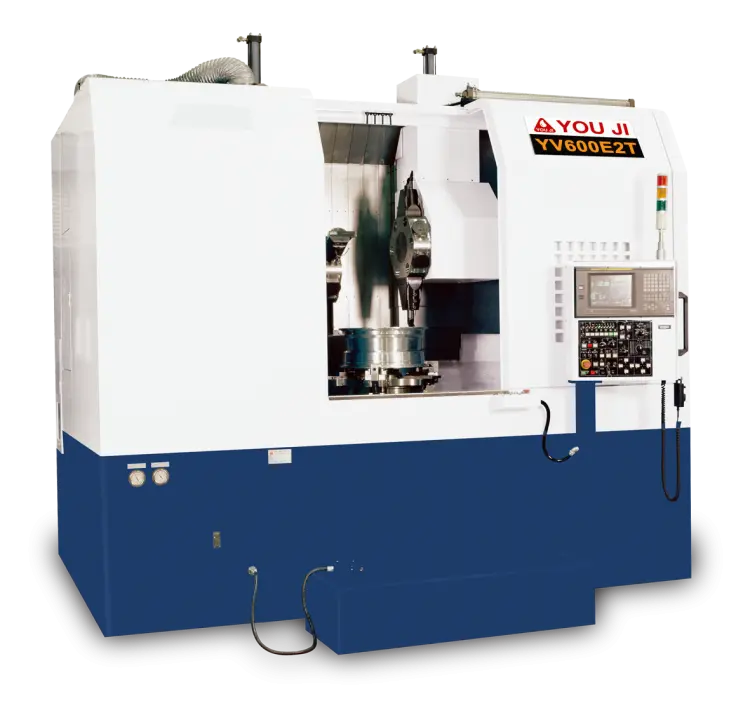

New YOU JI YV-600ATC | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New
The 25-machine series of You Ji YV Series vertical turning centers is engineered for small to medium part machining. Standard cutting diameters range from 10″ (254 mm) to 40″ (1016 mm), and maximum part weights from 440 lbs. to 6,600 lbs.
Starting with the 8″ (203 mm) chuck 200 series and ending with the 40″ (1016 mm) chuck 800 series, the machines offer a wide variety of sizes, configurations and accessories. All YV Series machines are available in twin spindle (right / left) configurations and are totally enclosed to contain all chips and coolant.
ITEM / MODEL YV-600ATC
Chuck Size (in.) 24 / 32
Max Swing (in.) 33.5
Std. Cutting Dia. (in.) 29.5
Z Travel (in.) 31.5
Max Part Weight (lbs.) 3,960
Tool System 12 ATC / Capto (opt.)
Spindle HP 30 (50) + 2 Speed
RPM (K) 1.5
C Axis Optional
Y Axis Optional
Twin Spindle Optional
Weight (lbs.) 37,400
Chip Conveyor
Full Machine Enclosure
3-Jaw Hyraulic Power Chucks
Fanuc CNC Control
