New YOU JI WV-600E | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New

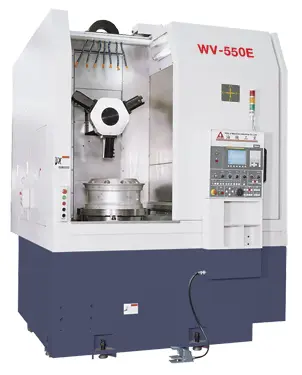

The four You Ji WV series high-production vertical lathes are designed for large lot size machining of large aluminum wheels or similar parts. The compact, high precision, heavy duty machines can be applied as a stand alone machining cell or be integrated with other machines to form a complete flexible automated manufacturing system.
Depending on the specific model, the machines handle wheel diameters up to 22″ (560 mm) or up to 26″ (660 mm).
ITEM / MODEL WV-600E
Chuck Size (in.) 24
Max Swing (in.) 33.5
Wheel Dia. (in.) 17 – 26
Z Travel (in.) 21.65
# of Axis 2
Tool System Hex Turret 10″ Sq. Ram
Spindle HP 30 (100 opt.)
RPM 1,500 (2,000 opt.)
APC No
Weight (lbs.) 27,500
