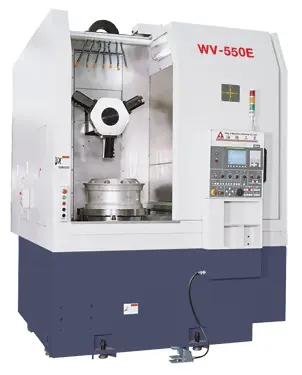

New YOU JI WV-550E2T | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New
The four You Ji WV series high-production vertical lathes are designed for large lot size machining of large aluminum wheels or similar parts. The compact, high precision, heavy duty machines can be applied as a stand alone machining cell or be integrated with other machines to form a complete flexible automated manufacturing system.
Depending on the specific model, the machines handle wheel diameters up to 22″ (560 mm) or up to 26″ (660 mm).
ITEM / MODEL WV-550E2T
Chuck Size (in.) 20
Max Swing (in.) 27.5
Wheel Dia. (in.) 13 – 22
Z Travel (in.) 14.96
# of Axis 4
Tool System (2) Hex Turrets on 10″ Sq. Rams
Spindle HP 60
RPM 2,000
APC Optional
Weight (lbs.) 32,000
