New YOU JI VTS-2500ATC | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New

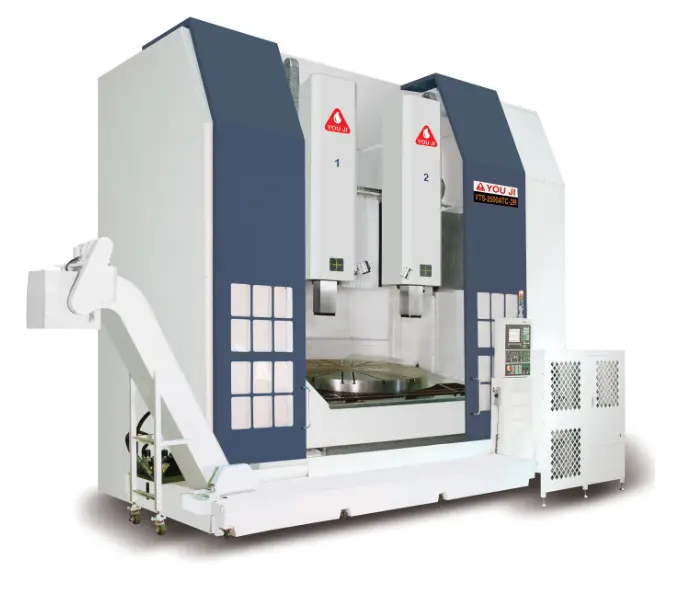

The seven You Ji VTS Series vertical fixed-rail turning centers are engineered for high-precision machining of bearings.
The heavy duty machines can be applied as a stand alone machining cells or be integrated with other machines to form a complete flexible manufacturing system. Depending on the specific machine model, table sizes range from 40″ (1016 mm) to 157″ (3978 mm) and standard cutting diameters from 43″ (1092 mm) to 173″ (4394 mm). Maximum turning height is 31.5″ (800 mm)
ITEM / MODEL VTS-2500ATC
Table Size (in.) 98
Max Swing (in.) 118
Std. Cutting Dia. (in.) 110
Z Travel (in.) 35.4
Max Turn Height (in.) 31.5
Table Load (lbs.) 33,000
Attachment Changer 4 Pieces
ATC System 28 (CAPTO C-6
ATC System Cont. and BT-50)
Spindle HP 100
RPM 160
C Axis Optional
APC Optional
Twin Ram Optional
Weight (lbs.) 110,000
Chip Conveyor
Full Machine Enclosure
Face Plate with Boring Mill Jaws
Fanuc CNC Control
