New YOU JI VLS-2000 ATC | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New

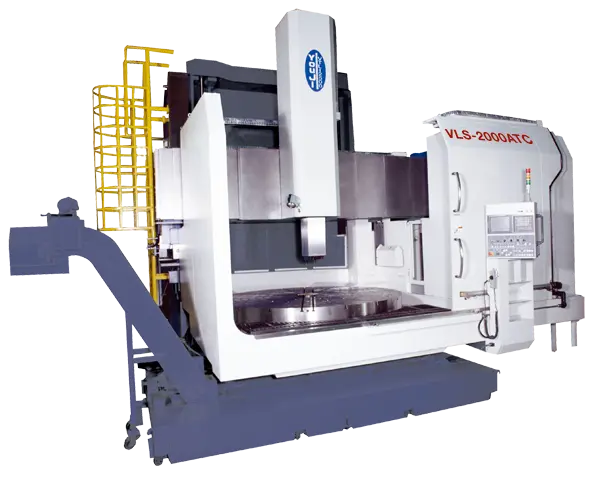

You Ji VLS-2000ATC vertical turning lathes are large, high precision, heavy-duty machines, competitively priced for heavy-duty turning of large size workpieces. Maximum turning diameter is 98.4″ (2500 mm). The rigid double columns, cross rail, and machine base are Meehanite castings, heavily ribbed to minimize thermal distortion and dampen vibration.
The X and Z axes are a rigid box way design coated with Turcite B. The Z axis is a large 9″ x 9″ (228 mm x 228 mm) square cast steel ram that is rigid even when extended its full 37.4″ (950 mm) length. Class 3 ballscrews are 2.48″ (63 mm)-dia. and driven directly by servo motors, eliminating belts or gears. The hydraulically clamped cross rail moves on box ways in 7.87″ (200 mm) increments.
ITEM / MODEL VLS-2000 ATC
Max Swing (in.) 98.4
Max Turning Diameter (in.) 98.4
Max Cross Travel (X Axis in.) -5.9;
Max Longitudinal Travel (Z Axis in.) 37.4
Max Cross Rail Travel (in.)
(Programmable in 200mm steps via M-Code) 45.2
Ram Distance to Table with Ram Retracted (max/min. in.) 82.6 / 37.4
Spindle Motors 50 HP x 2 (100 HP)
Spindle Load (lbs.) 22,000
Spindle RPM 2-200
Spindle Bearing Diameter (in.) 44.5 OD / 35.5 ID
Spindle Torque 41, 143 ft./lbs.
Manual Chuck 79″ 4-Jaw Independent
ATC Tool Positions 12
ATC Type Umbrella / Electric
ATC Tool Mounting #50 Taper
OD Tool Shank Size (in.) 1.25
ID Tool Shank Size (in.) 2.5
ATC Tool Change Time 30 Seconds
Maximum Single Tool Weight (lbs.) 110
Maximum Magazine Capacity (lbs.) 800
Z Axis Ballscrew Diameter (mm) 63 (2.48″) x 10 Pitch
X Axis Ballscrew Diameter (mm) 63 (2.48″) x 10 Pitch
Ballscrew Type Class 3 Double Nut
Ballscrew Mounting Type Pre-loaded, Double Anchored
X-Z Servo Motor (HP) X=9, Z=9
Rapid Traverse Rate X, Z 394, 394 IPM
Cutting Feed Rate 0.01 – 197 IPM
Positioning Accuracy +/- .0003″ Full Stroke
Repeatability +/- .0002″
Live Spindle Motor (HP) 20
Live Spindle Drive System 2 Speed Planetary Gearbox
Spindle RPM 2-2,400
Tool Shank Type BT-50
C Axis Drive System Dual Pinion Tandem Drive
C Axis Minimum Increment .001°
C Axis Position Accuracy +/- 10 Arc Seconds
C Axis Repeatability +/- 5 Arc Seconds
4 Jaw 79” Face Plate with 4 Independent Boring Mill Jaws
Square Guard Enclosure with Chip Wash
Coolant System with Coolant Through the Ram
Tool Kit
Halogen Lamp
1 Set Operation Manual
3 Color Operation Light
Spindle Orientation
Chip Conveyor with Chip Bucket
Air Conditioner for Electrical Cabinet
Automatic Lubrication System
