New YOU JI VHL-2000ATC-I+ ATC-II | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionNew
New
Best solution for those challenging shapes and multiple diameters work pieces.

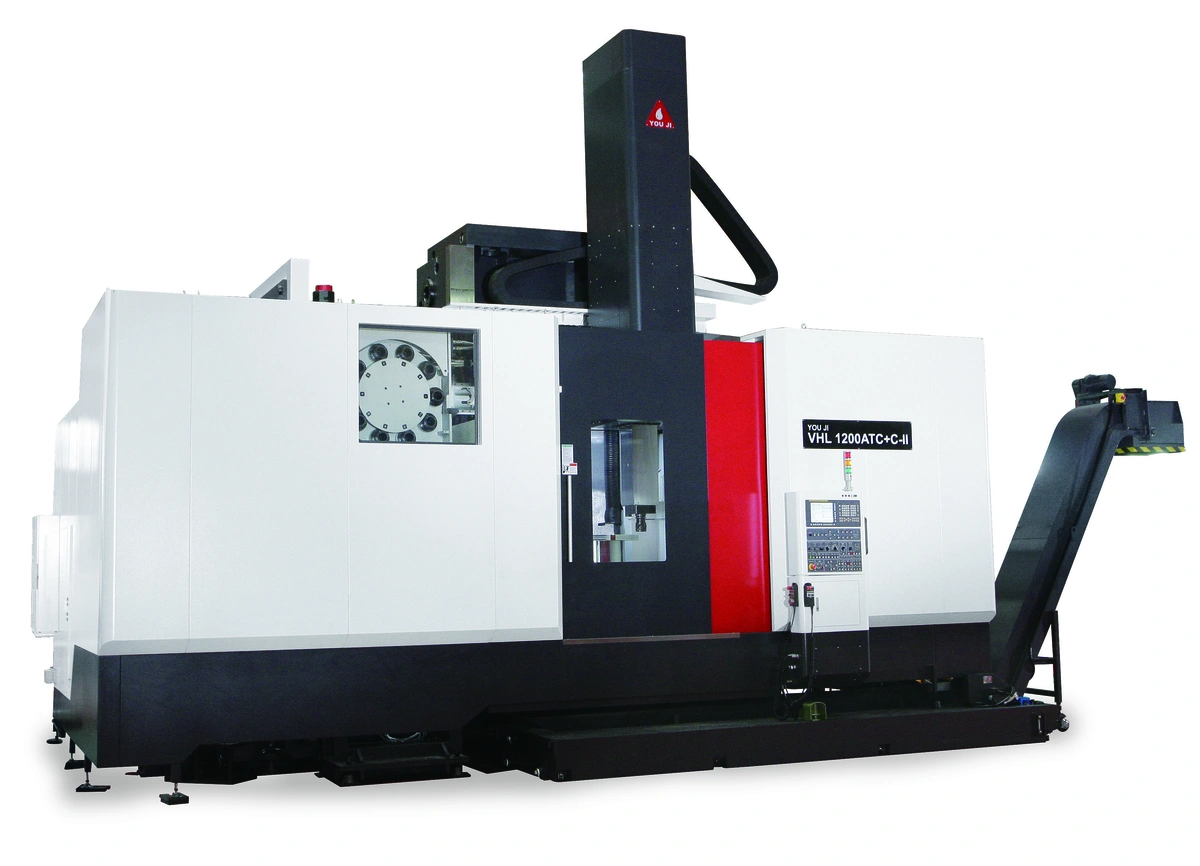

You Ji VHL series vertical turning lathe adds a horizontal ram can reach past wide diameters
to turn difficult-to-access surfaces.
It is possible to keep the cutting tool short and stout. More importantly, the part doesn’t have to be moved to another machine to complete
those features.
The side head configuration provides the best solution for those challenging shapes and multiple diameters work pieces.
Live tools and C axis are applicable for all VHL machines, providing extremely multifunctional features on turning, milling, drilling, tapping and grinding processes.
TEM / MODEL VHL-2000ATC-I+ ATC-II
Capacities
Maximum Swing 98.4″
Std. Turning Diameter 90.55″
Max. Turning Diameter 98.4″
Max. Cross Travel X1 Axis – 23.6″ ~ +53.14″
Max. Longitudinal Travel Z1 Axis 37.4″ (ATC), 47.2″ (ATC-I), 55.1″ (ACT-II)
Max. Cross Travel for Horizontal Ram X2 Axis 37.4″
Max. Longitudinal Travel for Horizontal Ram Z2 Axis 39.4″ (ATC), 55.1″ (ATC-I), 63″ (ATC-II)
Max. Cross Rail Travel 45.27″ (ATC), 61″ (ATC-I), 61″ (ATC-II)
Vertical Ram Distance to Table with Ram Retracted (max./min.) 80.7″ / 35.5″ (ATC), 96.45″ / 35.5″ (ATC-I), 96.45″ / 35.5″ (ATC-II)
Horizontal Ram Distance to Table Center from Ram Face (max./min.) 61″ / 23.6″
Horizontal Ram Distance to Table from Ram Center (max./min.) 44.3″ / 4.9″ (ATC), 60″ / 4.9″ (ATC-I), 67.9″ / 4.9″ (ATC-II)
Spindle
Spindle Motor 100 HP
Spindle Load 22,000 lbs.
Spindle RPM 2 – 200 RPM
Spindle Bearing Diameter 36″ O.D. / 27″ I.D.
Spindle Torque 41,143 ft./lbs.
Manual Chuck 79″ 4-Jaw Independent
ATC (Vertical Ram)
Tool Positions 12 (16, 32, 60 opt.)
ATC Type Umbrella / Electric
Tool Mounting #50 Taper
O.D. Tool Shank Size 1.25″
I.D. Tool Shank Size 2.5″
Tool Change Time 30 Seconds
Max. Single Tool Weight 110 lbs.
Max. Magazine Capacity 800 lbs.
ATC (Horizontal Ram – OPTIONAL)
Tool Positions 10
ATC Type Umbrella / Electric
Tool Mounting #50 Taper
O.D. Tool Shank Size 1.25″
I.D. Tool Shank Size 2.5″
Tool Change Time 30 Seconds
Max. Single Tool Weight 55 lbs.
Max. Magazine Capacity 550 lbs.
Ballscrews & Axis Motors
Z1, Z2 Axis Ballscrew Diameter 63mm (2.48″) x 10 Pitch
X1, X2 Axis Ballscrew Diameter 63mm (2.48″) x 10 Pitch
Ballscrew Type Class 3 Double Nut
Ballscrew Mounting Type Pre-loaded, Double Anchored
X-Z-C Servo Motor X1 & X2 9HP
Z1 9HP
Z2 18HP (2)
C 9HP
Feeds
Rapid Traverse Rate 472 (X1), 394 (Z1) IPM
394 (X2), 394 (Z2) IPM
Cutting Feed Rate 0.01 – 787 IPM
Positioning Accuracy ± .0003″ Full Stroke
Repeatability ± .0002″
Vertical & Horizontal Rams
Vertical Ram Size 10″ (250mm) Square
Vertical Ram Tool Interface BT-50 Taper
Horizontal Ram Size 10″ (250mm) Square
Horizontal Ram Tool Interface BT-50 Taper or 4 Position Turret opt.
C Axis & Live Tools (opt. for both Rams)
Spindle Motor 20 HP (25, 30, 35 opt.)
Drive System 2 Speed Gearbox
Spindle RPM 2,400
Tool Shank Type BT-50
C Axis Contouring .001°
General
Coolant Tank Capacity 400 Gallons
Coolant Pump Motor 1.33HP x 22 & 4HP x 1
Machine Weight 135,000 lbs. est.
Floor Space (std. machine) 570″ x 255″ x 255″-295″
Machine Power Source 440/460/480V, 3 Phase, 250 Amps*
Hydraulic Pump Motor 7.5 HP
FANUC 31iT-B CNC Control
Spindle Orientation
Full Square Guard Enclosure with Chip Wash
Coolant System
Tool Kit
Halogen Lamp
1 Set Operations Manual
3-Color Operations Light
12 Station ATC
Chip Conveyor
Heat Exchanger for Electrical Cabinet
Automatic Lubrication System
49″ Face Plate with 4 Independent Boring Mill Jaws (VHL-1200 & 1200II)
63″ Face Plate with 4 Independent Boring Mill Jaws (VHL-1600)
78.7″ Face Plate with 4 Independent Boring Mill Jaws (VHL-2000)
118″ Face Plate with 8 Independent Boring Mill Jaws (VHL-3000)
