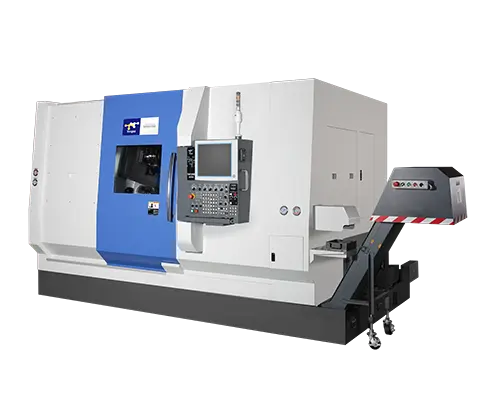

Multi-tasking Turning Center
Have one to sell?
ConditionNew
New
Dual spindle design complemented with 2 Y-axis and 3 power turrets
Workpieces can complete milling, tapping or even composite procedures such as eccentric turning in one jig fixture
By functioning with automatic bar feeder or robotic arm, automatic processing can be realized
Three tool turrets can perform multi-processing, effectively shortening cutting time required
Chuck O.D. 8" inch
Bar capacity Ø65 (Ø51) mm
X1/X2/X3 axis travel 230/205/230 mm
Y1/Y2/Y3 axis travel ±51/-/±51 mm
Z1/Z2/Z3/B axis travel 440/600/440/680 mm
X/Y/Z/B axis rapid traverse 30/15/36/30 m/min
Spindle nose A2-6
Spindle speed 4,500 (6,000) rpm
Spindle motor 18.5/15/11 kW
Sub-spindle chuck O.D. 8" mm
Sub-spindle speed 6,000 rpm
Sub-spindle motor 18.5/11 kW
Tool capacity 12 (16) x3 pc
