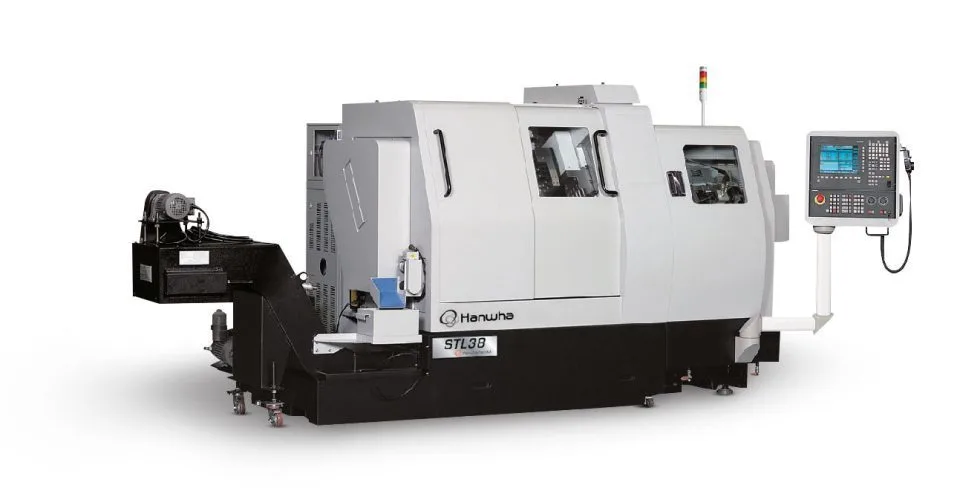

New HANWHA STL-38 | Swiss Type Automatic Screw Machines
Have one to sell?
ConditionNew
New
Turret type, sliding head machine (9-axis) with powerful Siemens 840D controller
- Max. 47 tools with gang & turret tool post are available, and customized high-complex tooling service is offered
- Combination of gang & turret unit and 3 path control system enables complex machining in various shapes
NC Siemens 840D
Max. machining diameter (mm) Ø32/38
Z1 Stroke (mm) 320
Main spindle
- Speed (rpm) 6,500
- Motor (kW) 23
OD tool
- No. of tools 5 (□16mm)
- No. of tools 4 (ER20M)
Cross drill
- Speed (rpm) 6,000
- Motor (kW) 1.07
Turret unit
- No. of tools 1 Unit (10 Station)
- No. of tools max. 30 (□20, ER20)
- Tool type VDI 30 (Option : BMT 45)
Sub spindle
- Speed (rpm) 6,500
- Motor (kW) 23
Back tool
No. of tools
- 3 (ER20M) 8 (ER20M)
- (3 Fixed) (4 Fixed + 4 Driven)
- Speed (rpm) – 6,000
- Motor (kW) – 1.07
Machine size (L x W x H) (mm) 3,130 x 1,860 x 1,780
Weight (kg) 4,400 4,500
Power consumption (Cable size) 40kVA, 26.7kW (VCTF 16SQ x 4C)
Air flow rate (Liter/Min) 20 ~ 30 (Hydraulic device capacity : 30L)
