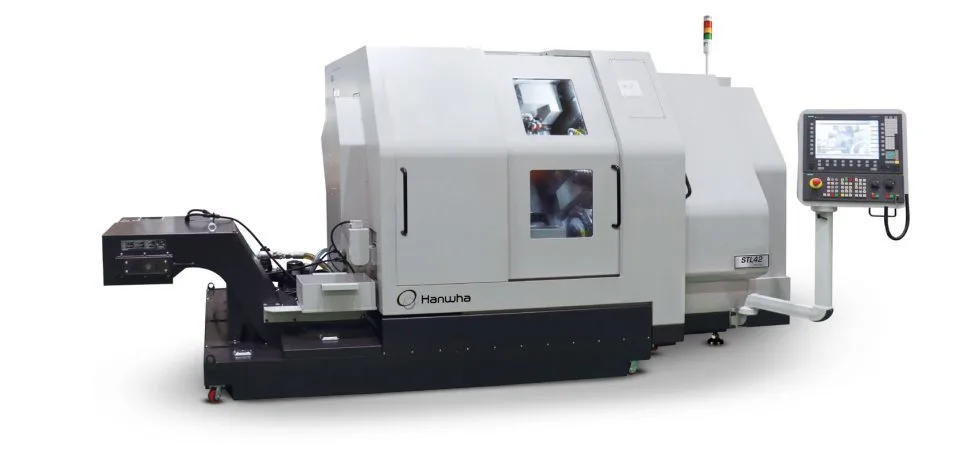

New HANWHA STL-42 | Swiss Type Automatic Screw Machines
Have one to sell?
ConditionNew
New
Specialized 9-axis turret type sliding head machine with powerful Siemens 840D controller (42mm)
- Max. 49 tools with gang & turret tool post are available, and structure, spec & tooling are optimized for material 42mm
- Optimization of Structure & Spec
- Upgraded Software Platform
NC Siemens 840D
Max. machining diameter (mm) Ø42
Z1 Stroke (mm) 420 282 (H), 125 (N)
Main spindle Speed (rpm) 6,000
Motor (kW) 22
OD tool No. of tools 5 (□20mm)
Cross drill No. of tools 5 (ER20)
Speed (rpm) 6,000
Motor (kW) 2.59
Turret unit No. of tools 1 Unit (10 Station)
No. of tools max. 30EA (□20, ER20)
Tool type VDI 30 (Option : BMT 45)
Sub spindle Speed (rpm) 6,000
Motor (kW) 22
Back tool No. of tools 9 (ER20)
(3 Fixed + 6 Driven)
Speed (rpm) 6,000
Motor (kW) 2.13
Machine size (L x W x H) (mm) 3,580 x 2,060 x 1,980
Weight (kg) 7,330
Power consumption (Cable size) 40kVA, 26.7kW (VCTF 16SQ x 4C)
Air flow rate (Liter/Min) 20 ~ 30 (Hydraulic device capacity : 30L)
