New SEIKI UT-650 | Vertical Machining Centers
Have one to sell?
ConditionNew
1 available
New

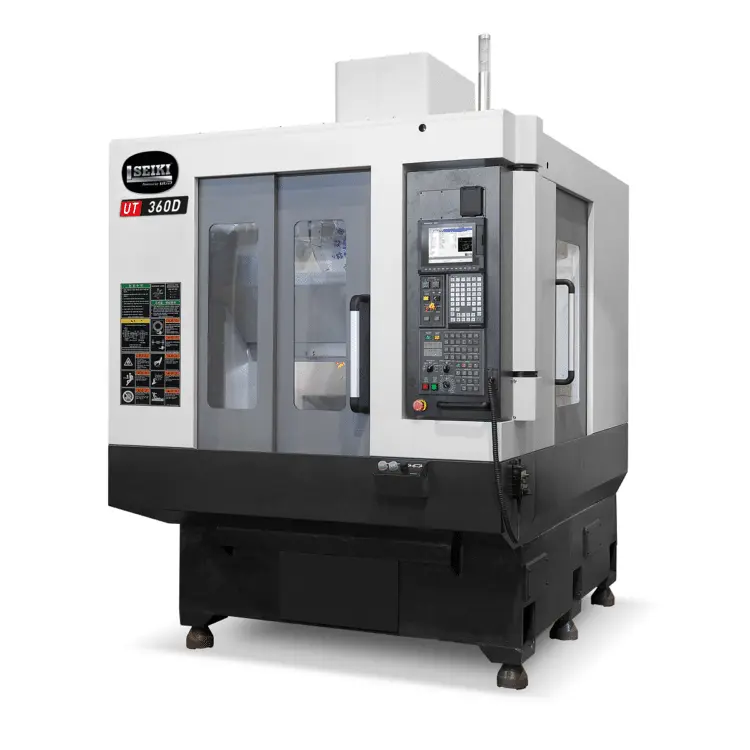

The Seiki UT series machines are the fastest CNC milling and tapping centers in their class and are well suited to high volume machining as well high speed 3D machining. These machines will exceed the demands of any manufacturer with high volume, high precision machining needs. Their compact size consumes very little valuable floor space while the blazing speed will deliver more parts per hour than the competition.
X-Axis Travel 53.15″
Y-Axis Travel 25.6″
Z-Axis Travel 18.9″
Table to Spindle 5.9″ min. / 24.8″ max.
Spindle Center to Column 26.4″
Automatic Tool Changer
Number of Tools 30 (+1 in the Spindle)
Tool Selection Bi-Directional Random
Tool Change Time 1.3 Sec. Tool-to-Tool
Chip to Chip Time 2.0 Sec. Chip-to-Chip
Maximum Tool Diameter 2.5″ with Adjacent Tools (4.7″ Without)
Maximum Tool Weight 6.6 lbs.
Tool Type BBT-30 Big Plus Dual Contact
Maximum Tool Length 5.9″
Spindle (Standard)
Spindle Motor 7.4 HP 30 min. / 5 HP continuous
Spindle Taper BBT-30 Dual Contact
Spindle Drive System Direct Drive
Spindle Speed 0 – 15,000 RPM
Ballscrews & Axis Motors
Ballscrew Diameter X-Y-Z X 40mm (1.57”) x 20mm pitch, Y 40mm (1.57”) x 20mm, Z 40mm (1.57”) x 16mm
Ballscrew Type Class 3 Double Nut Pre-Loaded
Ballscrew Mounting Type Double Anchored
Servo Motor HP X-Y-Z 3.0 – 3.0 – 3.0
Servo Motor Mounting Direct Coupled
Table
Table Working Surface 53.15″ x 23.6″
Max. Workload on Table 660 lbs.
Table Surface Ground / T-Slotted
Feeds
Rapid Traverse Rate X, Y, Z 1,989, 1,989, 1,890 IPM
Acceleration in Z 1.0G
Cutting Feed Rate 0.01 – 787 IPM
Positioning Accuracy +/- .0002″ Full Stroke
Repeatability +/- .00015″
General
Coolant Tank Capacity 70 Gallons
Machine Weight 14,300 lbs.
Floor Space 114″ x 126″ x 106″
Power Source 208/220 Volts, 3 Phase, 25 KVA**
