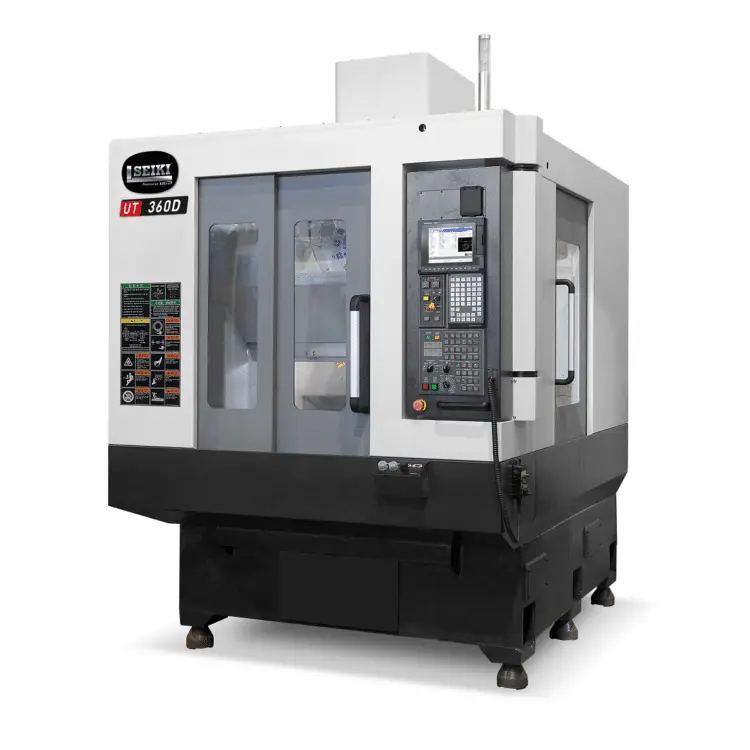

New SEIKI UT-360D | Vertical Machining Centers

Turret Type (Standard) Arm Type (Optional)
Travels
X-Axis Travel 20.5″
Y-Axis Travel 14.17″
Z-Axis Travel 13.8″ 18.9″
Table to Spindle 7.87″ min. / 21.7″ max. 7.87″ min. / 25.8″ max.
Spindle Center to Column 17.5″
Automatic Tool Changer
Number of Tools 20 24 (+1 in the Spindle)
Tool Selection Bi-Directional Fixed Bi-Directional Random
Tool Change Time 1.4 Sec. Tool-to-Tool 1.1 Sec. Tool-to-Tool
Chip to Chip Time 2.2 Sec. Chip-to-Chip 2.0 Sec. Chip-to-Chip
Maximum Tool Diameter 3.15″ 2.5″ with Adjacent Tools
Maximum Tool Weight 4.8 lbs. 6.2 lbs.
Tool Type BBT-30
Maximum Tool Length 7.9″
Spindle (Standard)
Spindle Motor 7.4 HP 30 min. / 5 HP continuous
Spindle Taper BBT-30 Dual Contact
Spindle Drive System Direct Drive
Spindle Speed 0 – 15,000 RPM
Ballscrews & Axis Motors
Ballscrew Diameter X-Y-Z X 25mm (1”) x 16mm pitch, Y 25mm (1”) x 16mm, Z 32mm (1.26”) x 16mm
Ballscrew Type Class 3 Double Nut Pre-Loaded
Ballscrew Mounting Type Double Anchored
Servo Motor HP X-Y-Z 4.0 – 4.0 – 3.0
Servo Motor Mounting Direct Coupled
Table
Table Working Surface 25.6″ x 15.7″ x 2 Pieces
Max. Workload on Table 550 lbs. each
Table Surface Ground / T-Slotted
Feeds
Rapid Traverse Rate X, Y, Z 2,362 IPM
Acceleration in Z 1.5G
Cutting Feed Rate 0.01 – 787 IPM
Positioning Accuracy +/- .0002″ Full Stroke
Repeatability +/- .00015″
General
Coolant Tank Capacity 60 Gallons
Machine Weight 9,900 lbs.
Floor Space 70.5″ x 126″ x 102″ 70.5″ x 126″ x 112″
Power Source 208/220 Volts, 3 Phase, 25 KVA**
Air Source 90 PSI
