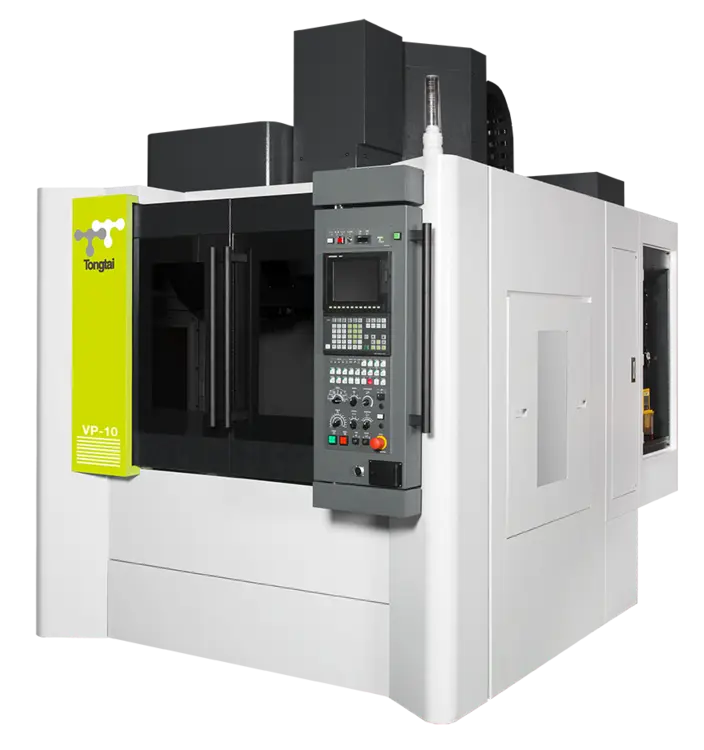

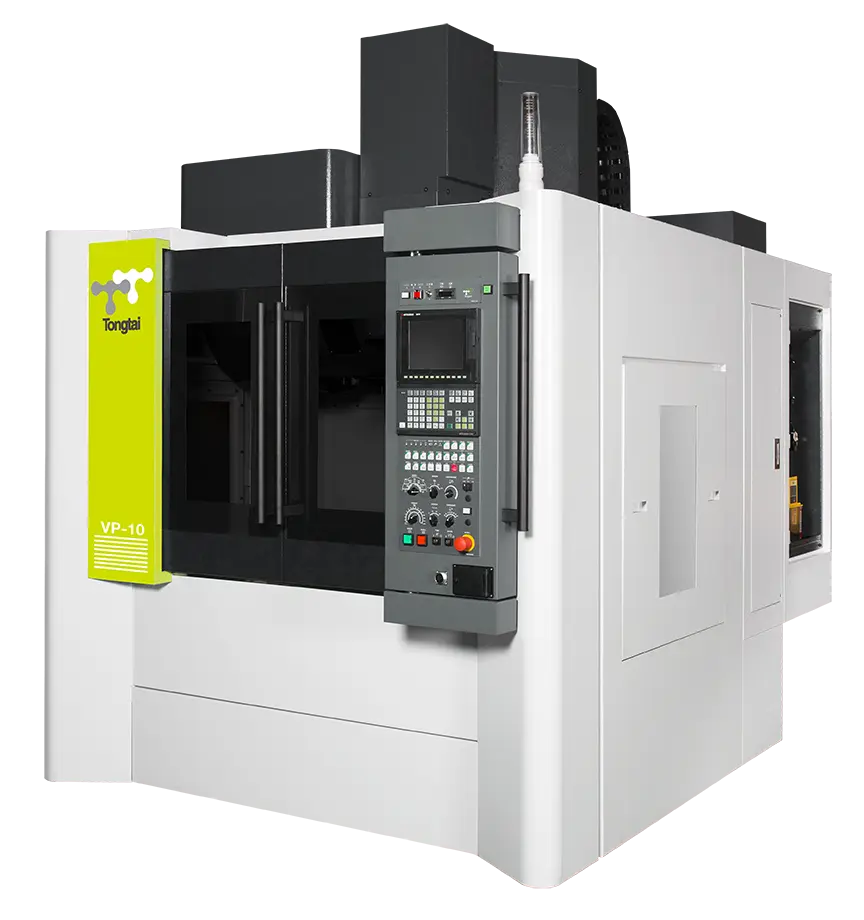

New TONGTAI VP-10 | Vertical Machining Centers

ITEM / MODEL VP-10

Travels
Longitudinal Travel X-Axis 40.2″
Cross Travel Y-Axis 20.1″
Vertical Travel Z-Axis 23.6″
Table to Spindle 3.94″ min/27.5″ max
Spindle Center to Column 21″
Table
Table Working Surface 42″ x 20.1″
Max. Workload on Table 1,100 lbs.
Table Surface Ground/ T-slotted
No. of T-slots x Width 5 x 18 mm
Table Height from Floor 35.4″
Spindle (standard)
Spindle Motor 20 HP / 10 min
Spindle Taper CAT-40 Dual Contact
Spindle Drive System Direct Drive Motor
Spindle Speed 0 – 10,000 RPM
Spindle Bearings Steel
Spindle (optional)
Spindle Motor 20 HP / 10 min
Spindle Taper CAT-40 Dual Contact
Spindle Drive System Direct Drive Motor
Spindle Speed 0 – 15,000 RPM
Spindle Bearings Ceramic
Automatic Tool Changer (Arm-Type)
Number of Tools 24 Tools (30 opt.)
Tool Selection Bi-directional-Random
Tool Change Time 2.0 Seconds Tool to Tool
Max. Tool Diameter 3″ with Adjacent Tools (6″ w/o)
Max. Tool Weight 15 lbs.
Tool Type CAT-40 (BT-40 opt.)
Max. Tool Length 10″
Ballscrews and Axis Motors
X-Y-Z Ballscrew Diameter 36 mm (1.4″) x 12 mm

Ballscrew Type Class 3 Double-Nut Pre-loaded
Ballscrew Mounting Type Pre-tensioned
X-Y-Z Servo Motor 3.0 – 3.0 – 4.0 HP
Servo Motor Mounting Direct Coupled
Feeds
Rapid Traverse Rate X, Y, Z 1,417 IPM
Acceleration X, Y, Z 0.7G
Cutting Feed Rate 0.01 – 394 IPM
Positioning Accuracy ± .0002″ Full Stroke
Repeatability ± .0001″
General
Coolant Tank Capacity 75 Gallons
Machine Weight 11,700 lbs.
Floor Space 128″ x 90″ x 110″
Machine Power Source* 208/220 Volts, 3 Phase, 75 Amps
Air Source 90 PSI
