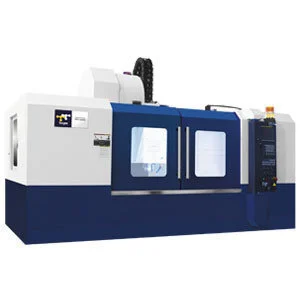

New TONGTAI TMV-2000A | Vertical Machining Centers

Have one to sell?
973-927-2839 x1000
sales@martechcnc.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
TONGTAI
Model:
TMV-2000A
Condition:
Build To Order
Status:
For Sale

Description

The five-machine series of Tongtai TMV 40/50 taper series high-speed vertical machining centers combine speed, rigidity and precision. Large NSK linear ways on all axes with large diameter pre-tensioned ballscrews, and a large diameter rigid spindle facilitate heavy cutting in both 40 and 50 taper applications. Heavy Meehanite FC-30 castings provide strength and dampen vibrations.

X79"2,006.6 mm
Y30"762 mm
Z28"711.2 mm
Power0 hp20 W
RPM10,000 RPM10,000 RPM
# ATC2424
TaperCAT-40CAT-40
Table-L (X-Axis)83"2,108.2 mm
Table-W (Y-Axis)30"762 mm

TEM / MODEL TMV-2000A

X Travel 79″
Y Travel 30″
Z Travel 28″
Rapids 708 IPM
Table Size 83″ x 30″
Table Load 4,100 lbs.
Spindle HP 20
RPM (K) 10K/12K/15K
Std. Spindle Drive Belt
Spindle Taper ISO-40
Opt. Spindle Drives Direct & Integral
ATC Capacity 24 (30 opt.)
ATC Type Arm Type
ATC Time 3 Seconds
Weight 26,500 lbs.
