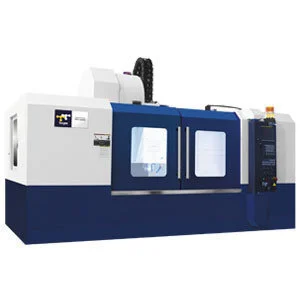

New TONGTAI TMV-1050Q-II | Vertical Machining Centers

Have one to sell?
973-927-2839 x1000
sales@martechcnc.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
TONGTAI
Model:
TMV-1050Q-II
Condition:
Build To Order
Status:
For Sale

Description

The five-machine series of Tongtai TMV 40/50 taper series high-speed vertical machining centers combine speed, rigidity and precision. Large NSK linear ways on all axes with large diameter pre-tensioned ballscrews, and a large diameter rigid spindle facilitate heavy cutting in both 40 and 50 taper applications. Heavy Meehanite FC-30 castings provide strength and dampen vibrations.

X41"1,041.4 mm
Y24"609.6 mm
Z20"508 mm
Power0 hp20 W
RPM15,000 RPM15,000 RPM
# ATC3030
TaperCAT-40CAT-40
Table-L (X-Axis)0.9449"24 mm
Table-W (Y-Axis)1.6929"43 mm

TEM / MODEL TMV-1050Q-II

X Travel 41″
Y Travel 24″
Z Travel 20″
Rapids 1,890 IPM
Table Size 43″ x 24″
Table Load 1,100 lbs.
Spindle HP 20
RPM (K) 15,000
Std. Spindle Drive Direct
Spindle Taper ISO-40
Opt. Spindle Drives –
ATC Capacity 30
ATC Type Arm Type
ATC Time 2.1 Seconds
Weight 15,400 lbs.
