New TONGTAI QVM-610A X 2000-6000 | Vertical Machining Centers
Have one to sell?
ConditionNew
New

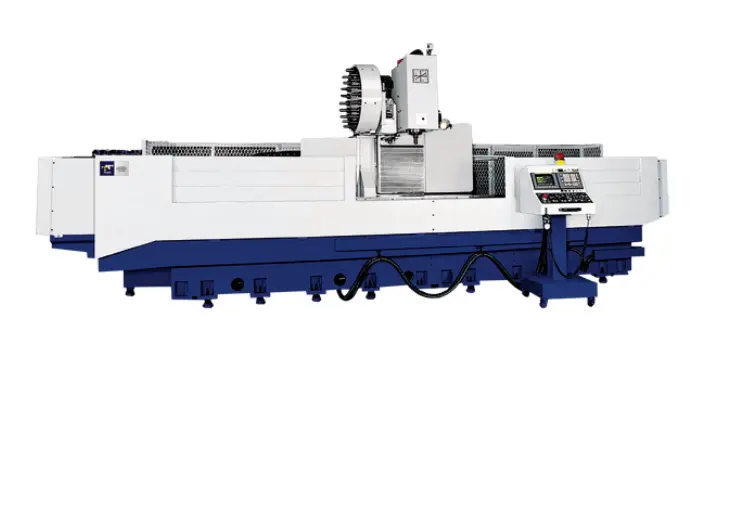

The Tongtai QVM-610A x 2,000 – 6,000 long travel moving column milling and tapping center is a heavy duty yet fast CNC milling and tapping center. The machines are designed to machine either long narrow workpieces or enable multiple set-ups with the work table sectioned into a variety of safe work zones. With X-axis travels of 2, 3, 4, 5, or 6 meters and Y-axis travel of 16.4″ (416 mm) [23.6″/31.5″, 600 mm/800 mm optional] the machine meets a wide variety of applications. The machine is a traveling column type design where the worktable is stationary.
ITEM / MODEL QVM-610A X 2000-6000
X Travel 78.7″ (2000) / 118.1″ (3000) / 157.5″ (4000) / 196″ (5000) / 236″ (6000)
Y Travel 16.14″ (23.6″ / 31.5″ opt.)
Z Travel 18.1″ (23.6″ opt.)
Rapids 394 (X), 944 (Y), 944 (Z) IPM
Table Size (in.) 87″/126″/165″/204″ x 16.14″ (23.6″ / 31.5″ opt.)
Ram to Table Max (in.) 7.87″ min. / 26″ max. (31.47″ max. opt.)
Spindle Taper BT-40
Standard RPM 80 – 10,000 RPM
Standard Spindle Drive Belt Drive
Standard Spindle HP 20
ATC Capacity 24 Tools
ATC Type Arm-Type
ATC Time 3 Seconds Tool to Tool
5 Seconds Chip to Chip
Weight (lbs.) Varies Upon Travel Size
Flood Coolant System with washdown hose
Spindle oil cooler
Air Blast for Spindle
Auto Lubrication with Alarm
Table guarding with drop down style doors
Halogen Work Lamp
Screw Type Chip Conveyor
Caterpillar Type Chip Conveyor
Fanuc OiM-D with 8.4” color LCD
Rigid Tapping
Remote manual pulse generator
