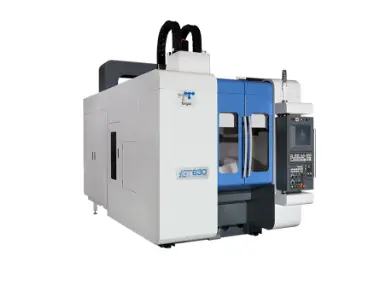

New TONGTAI GT-500-5AX | 5-Axis Vertical Machining Centers
Have one to sell?
ConditionNew
New
The four-machine Tongtai MDV and GT Series of high speed, high accuracy 5-axis trunnion table machining centers is engineered for complex, precise machining of mold, die, aerospace and medical parts. The machines have heavy Meehanite castings, roller-type linear guideways in linear axes, and zero-backlash roller gear mechanisms in tilt and rotary axes to maximize rigidity and precision. Large diameter double-anchored and pre-tensioned ballscrews with least increment input of 0.0001mm/ 0.00001″ produce positioning accuracy of +/- 0.003mm (0.00012″) and repeatability of 0.0025 mm (0.0001″) with scales.
ITEM / MODEL GT-500-5AX
REQUEST A QUOTE
X Travel 24″
Y Travel 27.95″ (+6.3 for tool change)
Z Travel 20″
A Axis Tilt -30 ~ +120 Degrees
C Axis Roll 360°
Rapids 1,890 IPM
A/C Rapid RPM 30 / 50
Table Size 20″ ∅
Table Load 660 lbs.
Spindle 33 HP
RPM 12,000 Standard
(15/18/24 Opt.)
Spindle Drive Integral Motor Spindle
ATC Capacity 30 Tools (40/60 opt.)
Control Fanuc (Heidenhain Opt.)
Weight 26,400 lbs.
Full Machine Enclosure
Flood Coolant System with programmable air blast
Air blast for spindle
Auto Lubrication with Alarm
Automated chip removal system with jet wash coolant flush and caterpillar chip conveyor
Halogen work lamp
Remote Handwheel
Heat exchangers for control cabinets
Rigid Tapping
Heidenhain linear scales X,Y,Z
Heidenhain rotary scales A,C
