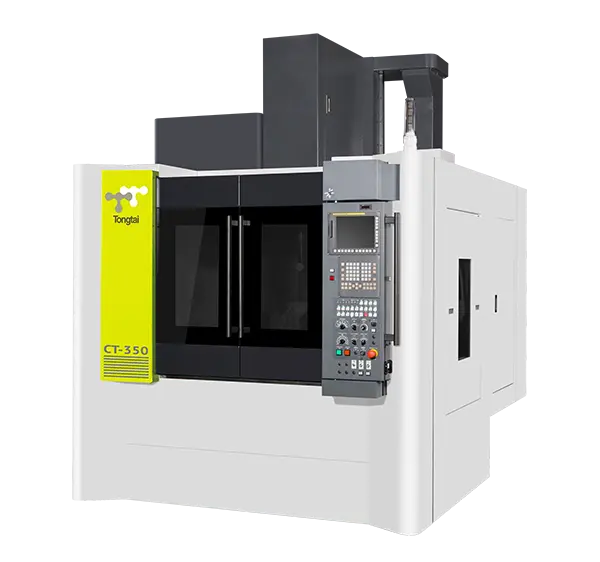

New TONGTAI CT-350 | 5-Axis Vertical Machining Centers
Have one to sell?
ConditionNew
New
Tongtai CT Series high-speed, high-accuracy 5-axis trunnion table machining centers are engineered for complex machining of mold, die, aerospace and medical parts.
X, Y, and Z axis travels are 15.7″ x 20.1″ x 20.1″ (398 mm x 510 mm x 510 mm) respectively. A 20 hp, 15,000 rpm direct drive spindle provides both low end torque and high speed finishing ability via high/low winding switching. Both Big Plus 40 taper or HSK-63A toolholding is available. A 20,000 rpm integral spindle is optional.
Rapid traverse rates are 1,417 inch/min (36 m/min) in X and Y and 1,181inch/min (30 m/min) in Z. Linear axes have 45mm (1.77″) – dia. roller-type guideways, and tilt and rotary axes employ a zero backlash roller gear mechanism. Large diameter 40mm (1.57″) in X and Y and 45mm (1.77″) in Z double anchored and pre-tensioned ballscrews with least increment input of .0001mm/ .00001″ provide positioning accuracy of +/-0.00012″ (0.00304 mm) and repeatability of 0.0001″ (0.00254 mm).
Heavy Meehanite castings provide rigidity and strength.
The trunnion table’s patented roller gear drive acts as a gear. With zero backlash, roller gear drive delivers accuracy of +/- 15 arc seconds and repeatability of +/- 10 arc seconds utilizing the standard encoders. The addition of optional rotary scales enhances positioning and repeatability to only +/- 3 arc seconds. A rotary union for hydraulic supply for fixtures is optional. The standard 30 tool automatic tool changer performs changes in 2.0 seconds with average chip to chip time of 3.6 seconds. Optional are 40 and 60 tool capacity are optional.
Standard features includes dual rear-discharge screw-type chip conveyors, a 200 gallon coolant system and full machine enclosure. Controller choices include the Fanuc OiM-F for 4+1 applications or the Heidenhain iTNC-640 for full 5-axis applications. The Fanuc 31iM-B5 is also available for applications requiring simultaneous 5-axis contouring.
ITEM / MODEL CT-350
REQUEST A QUOTE
Travels
Longitudinal Travel X-Axis 15.7″ (± 7.87″ from table center)
Cross Travel Y-Axis 20.1″
Vertical Travel Z-Axis 20.1″
Table Tilt A-Axis +30° ~ -120°
Table Rotation C-Axis 360°
Spindle Nose to Table with Table in Horizontal Position 1.97″ min. / 22.05″ max.
Table
Max. Workpiece Size 15″∅ x 8.66″ Tall
Table Working Surface 13.77″∅ / T-slotted
Table Surface Ground / T-slotted
# of T-slots x Width 4 x 12 mm
Max. Workload on Table 440 lbs.
Max. RPM (tilt/rotary) 33.3 RPM / 40 RPM
Feedback System (standard) Servomotor Encoder
Feedback System (optional) Direct Mount Encoder (tilt axis) by
Heidenhain Rotary Scale
Hydraulic supply for Fixtures 8 Port Rotary Union (optional)
Spindle (std. 15,000 RPM)
Spindle Motor 20 HP
Spindle Torque 70 ft./lbs. at 1,500 RPM
Spindle Taper Big Plus CAT-40 / HSK-63A
Spindle Drive System Direct Drive
Spindle Speed 0 – 15,000 RPM
Spindle Bearings Ceramic with Air/Oil Mist Lubrication
Spindle (opt. 20,000 RPM)
Spindle Motor 52 HP 30 min. / 40 HP 30 min.
Spindle Torque 29 ft./lbs. at 9,600 RPM
Spindle Taper HSK-63A
Spindle Drive System Integral Motor
Spindle Speed 0 – 20,000 RPM
Spindle Bearings Ceramic with Air/Oil Mist Lubrication
Automatic Tool Changer (arm-type)
# of Tools 30 Tools (40, 60 opt.)
Tool Selection Bi-directional-Random-Fixed Address
Tool Change Time 2.0 seconds Tool to Tool
Max. Tool Diameter 4.33″
Max. Tool Weight 17.6 lbs.
Tool Type CAT-40 or HSK-63A (BT-40 opt.)
Max. Tool Length 11.8″
Ballscrews and Axes Motors
X – Y – Z Ballscrew Diameter X/Y 1.57″ x 10 mm Pitch
Z 1.77″ x 10 mm Pitch
Ballscrew Type Class 3 Double Nut Pre-loaded
Ballscrew Mounting Type Pre-tensioned
X – Y – Z – A – C Servo Motor HP (Fanuc) 3.6 HP – 3.6 HP – 5.2 HP – 3.6 HP – 2.1 HP
Servo Motor Mounting Direct Coupled
Feeds
Rapid Traverse Rate X, Y, Z X/Y 1,417 IPM, Z 1,181 IPM
Cutting Feed Rate 394 IPM
Linear Positioning Accuracy (with scales) ± .00025″ (± .00012) Full Stroke
Linear Repeatability (with scales) .00015″ (.0001)
Tilt / Rotary Accuracy (with scales) ± 15 (± 3) Arc Seconds
Tilt / Rotary Repeatability (with scales) ± 10 (± 3) Arc Seconds
General
Coolant Tank Capacity 75 Gallons
Machine Weight (base machine only) 15,400 lbs.
Floor Space 122″ x 85″ x 123″
Machine Power Source 208/220 Volts, 3 Phase 125 Amps*
Air Source 90 PSI
Full Machine Enclosure
Flood Coolant System with Programmable Air Blast
Air Blast for Spindle
Auto Lubrication with Alarm
Automated Chip Removal System with 2 Screw Conveyors and 1 Caterpillar Chip Conveyor
Halogen Work Lamp
Remote Handwheel
Heat Exchangers for Control Cabinets
Rigid Tapping
Prep for High Pressure Coolant through the Spindle
