Twin Spindle - Johnford SV-45-2H
Have one to sell?
ConditionNew
New

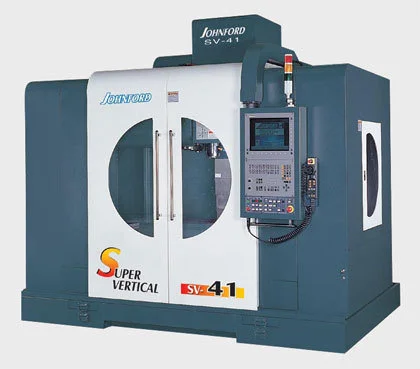

The three-machine series of Johnford SV and VMC twin spindle vertical machining centers are box-way, geared-head, C-frame machines that feature solid heavily-ribbed Meehanite cast iron construction to eliminate vibration and ensure excellent surface finishes and long cutting tool life. The machines offer X-Y-Z travel of 45″ x 21″ x 25″ (1125 mm x 525 mm x 626 mm) to 51″x 34″ x 28″ (1275 mm x 850 mm x 700 mm). Table sizes range from 48″ x 20″ (1220 mm x 500 mm) to 59″ x 28″ (1500 mm x 710 mm)
ITEM / MODEL SV-45-2H
X Travel (in.) 45
Y Travel (in.) 21
Z Travel (in.) 25
Table Size (in.) 48 x 20
Table Load (lbs.) 3,300
Spindle HP 20
Spindle Taper 40
RPM (K) 10
Spindle Drive 2 Speed Gearbox
ATC Capacity (Arm-Type) 24
Distance of Spindles (in.) 17
Weight (lbs.) 17,800
