New JOHNFORD VMC-2000HD | Vertical Machining Centers
Have one to sell?
ConditionNew
New

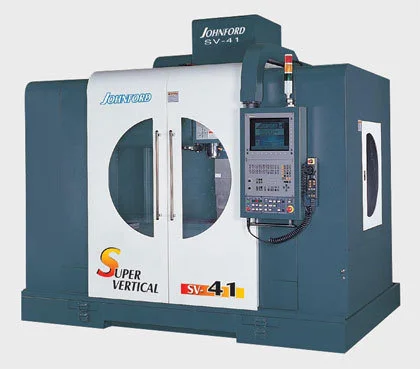

Johnford 50 taper SV and VMC super vertical machining centers are box-way, geared-head, C-frame machines that feature solid heavily-ribbed Meehanite cast iron construction to eliminate vibration and ensure excellent surface finishes and long cutting tool life. X-Y-Z travels for the 12-machine series range from 33″ x 20″ x 24″ (838 mm x 508 mm x 600 mm) to 120″ x 43″ x 32″ (3000mm x 1075 mm x 800 mm).
ITEM / MODEL VMC-2000HD
X Axis Travel 81″
Y Axis Travel 34″
Z Axis Travel 32″
Table Size 86″ x 34″
Table Load Capacity 10,500 lbs.
Spindle HP 25 (35)
Spindle Speed 6,000 / 10,000 /
15,000
Spindle Drive 2 Speed Gearbox, Direct/Integral Opt.
ATC Capacity 24 (32 / 40 / 60 Opt.)
(Arm-Type)
Weight 41,000 lbs.
