New JOHNFORD SV-60H | Vertical Machining Centers
Have one to sell?
ConditionNew
New

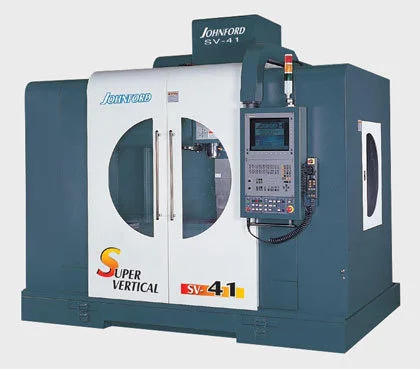

Johnford 50 taper SV and VMC super vertical machining centers are box-way, geared-head, C-frame machines that feature solid heavily-ribbed Meehanite cast iron construction to eliminate vibration and ensure excellent surface finishes and long cutting tool life. X-Y-Z travels for the 12-machine series range from 33″ x 20″ x 24″ (838 mm x 508 mm x 600 mm) to 120″ x 43″ x 32″ (3000mm x 1075 mm x 800 mm).
ITEM / MODEL SV-60H
X Axis Travel 60″
Y Axis Travel 28″
Z Axis Travel 25″
Table Size 63″ x 28″
Table Load Capacity 3,300 lbs.
Spindle HP 20 (35)
Spindle Speed 6,000 / 10,000 /
15,000 RPM
Spindle Drive 2 Speed Gearbox, Direct/Integral Opt.
ATC Capacity 24 (32 / 40 / 60 Opt.)
(Arm-Type)
Weight 23,500 lbs.
