New JOHNFORD SV-40H | Vertical Machining Centers
Have one to sell?
ConditionNew
New

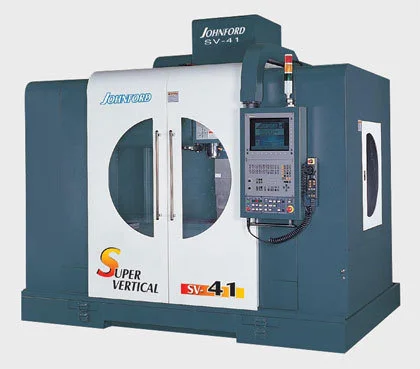

Johnford 50 taper SV and VMC super vertical machining centers are box-way, geared-head, C-frame machines that feature solid heavily-ribbed Meehanite cast iron construction to eliminate vibration and ensure excellent surface finishes and long cutting tool life. X-Y-Z travels for the 12-machine series range from 33″ x 20″ x 24″ (838 mm x 508 mm x 600 mm) to 120″ x 43″ x 32″ (3000mm x 1075 mm x 800 mm).
ITEM / MODEL SV-40H
X Axis Travel 41″
Y Axis Travel 20″
Z Axis Travel 24″
Table Size 47″ x 80″
Table Load Capacity 1,760 lbs.
Spindle HP 20
Spindle Speed 6,000 RPM
Spindle Drive 2 Speed Gearbox
ATC Capacity 24 (32 / 40 opt.)
(Arm-Type)
Weight 15,500 lbs.
