New JOHNFORD VMC-3000S | Vertical Machining Centers
Have one to sell?
ConditionNew
New

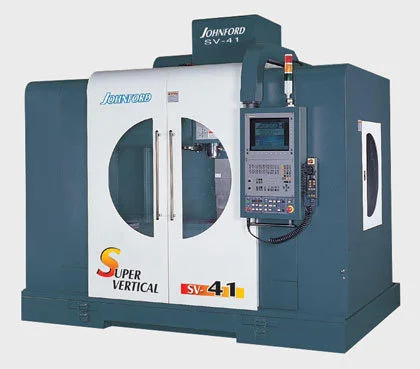

Johnford 40 taper SV and VMC super vertical machining centers are box-way, geared-head, C-frame machines that feature solid heavily-ribbed Meehanite cast iron construction to eliminate vibration and ensure excellent surface finishes and long cutting tool life. X-Y-Z travels for the 13-machine series range from 32″ x 20″ x 24″ (800mm x 500 mm x 600 mm) to 120″ x 43″ x 32″ (3000mm x 1075 mm x 800 mm).
ITEM / MODEL VMC-3000S
X Travel (in.) 120
Y Travel (in.) 43
Z Travel (in.) 32
Table Size (in.) 126 x 39
Table Load (lbs.) 10,500
Spindle HP 15 (20)
RPM (K) 10/15/2024
Spindle Drive 2 Speed Gearbox, Direct/Integral Opt.
ATC Capacity (Arm-Type) 24 (30 / 40 / 60 opt.)
Weight (lbs.) 50,000
Flood Coolant System with programmable air blast
Air blast for spindle
Auto Lubrication with Alarm
Full machine enclosure
Halogen Work Lamp
Twin screw type chip conveyors and chip flush system
Remote Handwheel
Heat exchangers for control cabinets
Rigid Tapping
Spindle oil cooler
