New JOHNFORD SV-33HN | Vertical Machining Centers
Have one to sell?
ConditionNew
New

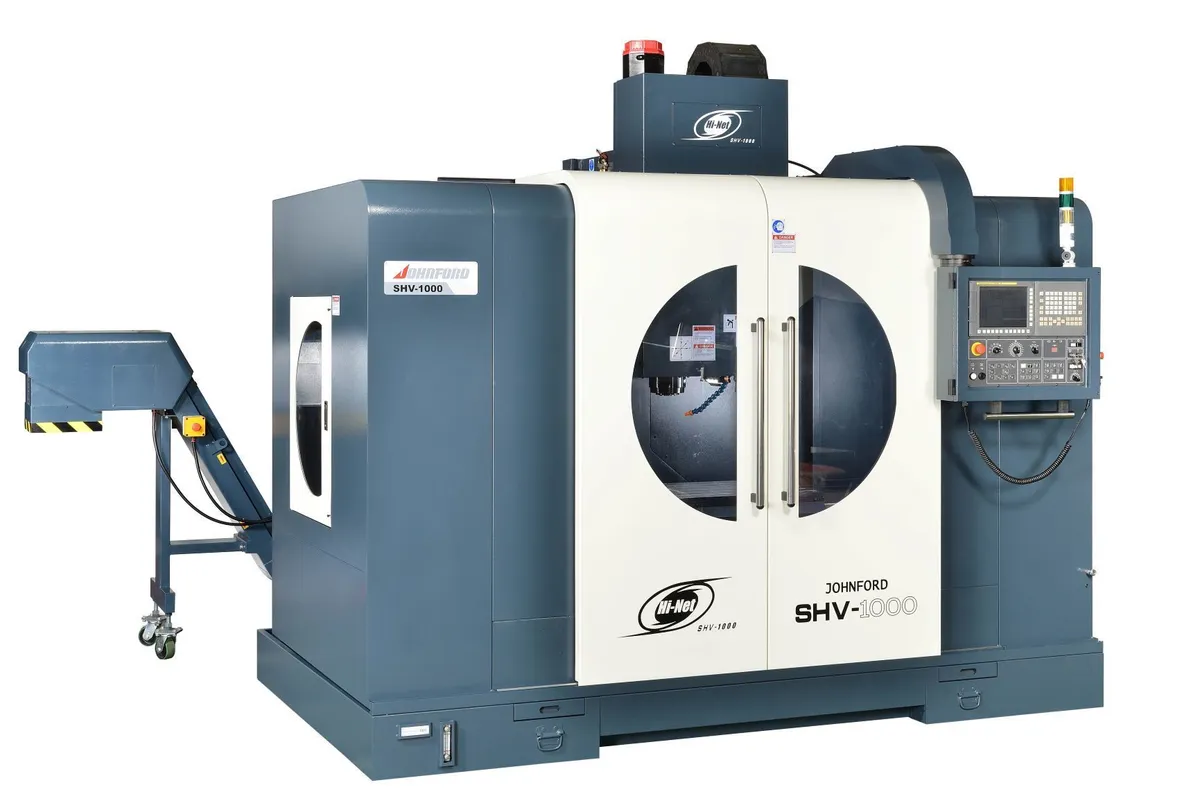

Johnford Super Hi-Net series of vertical machining centers combines speed, rigidity and precision specifically aimed at high speed mold machining. To maximize surface finish quality of molds, the SHV Series machines feature Schneeberger roller type linear ways on all axes with large diameter pre-tensioned ballscrews. Weiss integral spindles with 31 hp are standard equipment.
ITEM / MODEL SV-33HN
REQUEST A QUOTE
X Travel (in.) 33
Y Travel (in.) 24
Z Travel (in.) 24
Table Load (lbs.) 2,840
Rapids (in./min.) 1,181
Control (Fanuc) 31iM-B
Spindle Type #1 Weiss Integral
RPM (K) #1 24 / 18
Spindle HP #1 31
ATC Capacity #1 24 HSK-63A
Spindle Type #2 N/A
RPM (K) #2 N/A
Spindle HP #2 N/A
ATC Capacity #2 N/A
Weight (lbs.) 17,600
Flood Coolant System with programmable air blast
Air blast for spindle
Auto Lubrication with Alarm
Full machine enclosure
Halogen Work Lamp
Twin screw type chip conveyors and chip flush system
Remote Handwheel
Heat exchangers for control cabinets
Rigid Tapping
Spindle oil cooler
