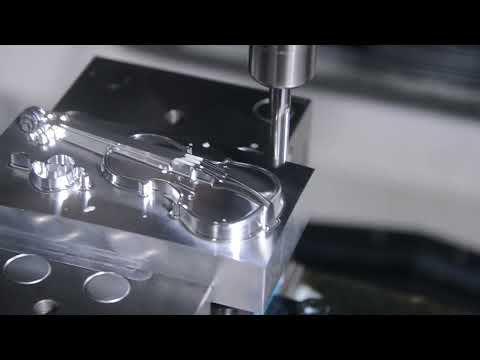

The Seiki PT-400S is the fastest CNC milling and tapping center in its class and is also well suited to graphite machining as well high speed 3D machining. This machine will exceed the demands of any manufacturer with high volume, high precision machining needs. The compact size consumes very little valuable floor space while the blazing speed will deliver more parts per hour than the competition. The machine is a fixed column / moving table type design.
Turret Type (Standard) Arm Type (Optional)
Travels
X-Axis Travel 20.5"
Y-Axis Travel 15.7"
Z-Axis Travel 13.8"
Table to Spindle 5.9" min. / 19.7" max.
Spindle Center to Column 17.5"
Automatic Tool Changer
Number of Tools 20
Tool Selection Bi-Directional Fixed
Tool Change Time 1.4 Sec. Tool-to-Tool
Chip to Chip Time 2.2 Sec. Chip-to-Chip
Maximum Tool Diameter 3.15"
Maximum Tool Weight 4.8 lbs.
Tool Type BBT-30
Maximum Tool Length 7.9"
Spindle (Standard)
Spindle Motor 7.4 HP 30 min. / 5 HP continuous
Spindle Taper BBT-30 Dual Contact
Spindle Drive System Direct Drive
Spindle Speed 0 – 24,000 RPM
Ballscrews & Axis Motors
Ballscrew Diameter X-Y-Z X 25mX 25mm (1”) x 16mm pitch, Y 25mm (1”) x 16mm, Z 32mm (1.26”) x 16mm
Ballscrew Type Class 3 Double Nut Pre-Loaded
Ballscrew Mounting Type Double Anchored
Servo Motor HP X-Y-Z 2.0 – 2.0 – 3.0
Servo Motor Mounting Direct Coupled
Table
Table Working Surface 24.4" x 15.4"
Max. Workload on Table 330 lbs.
Table Surface Ground / T-Slotted
Feeds
Rapid Traverse Rate X, Y, Z 2,362 IPM
Acceleration in Z 2.0G
Cutting Feed Rate 0.01 – 787 IPM
Positioning Accuracy +/- .0002" Full Stroke
Repeatability +/- .00015"
General
Coolant Tank Capacity 60 Gallons
Machine Weight 6,270 lbs.
Floor Space 61.4" x 99" x 96"
Power Source 208/220 Volts, 3 Phase, 25 KVA**
Air Source 90 PSI
Quill Taper
General
CNC Control Mitsubishi M80A
Machine Dimensions with Chip Conveyor 132″ x 65″ x 69″
Machine Weight 12,540 lbs.
