New HEM Saw V100HA-HC-CTS | Vertical Band Saws
Have one to sell?
ConditionNew
New
Product Description

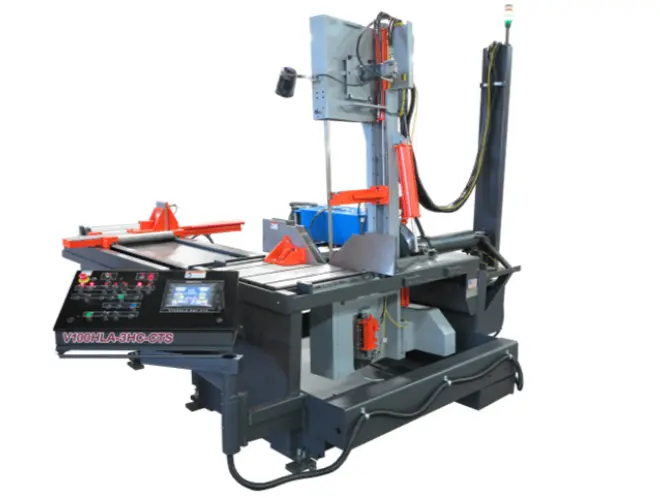

V100HLA-3HC-CTS is a “high column” version of the VT100HLA. It has an expanded height capacity of 31” at 90ᵒ which allows an 18” capacity for 45ᵒ cuts. It is equipped with a 48” bar-feed that is capable of multiple indexes controlled by touch-screen control. Two vises are included.
Rectangular Capacity 0-18" W x 0-31" H
Square Capacity 0-18" (Square)
Round Capacity 0-18" (Diameter)
Bar-feed 0-48" (Stroke Hydraulic Motor - Multiple Index)
Motor 15 HP
Hydraulic Motor 5 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 16' 6" L x 1.25" H x .042"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Vertical Band Saws: V100HA-HC-CTS
Swing-Away Control Console w/ 8" Touch Screen
Computer Controlled Feed System
Power Programmable Tilt from Touch Screen
Vise - Full Stroking Main & Feed
Adjustable Clamping Force
Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
Variable Blade Speed w/ Readout on Touch Screen
Guide Arm - Powered
Powered Blade Tension
Passive "Cut Watcher®" System
Idle Base Rollers - 1 Each Side of Base
Coolant System - Flood w/ Wash-Down Hose
Boltable Side Wings for Coolant Drainage
Blade Brush
Broken Blade Function
Out-of-Stock Function
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
