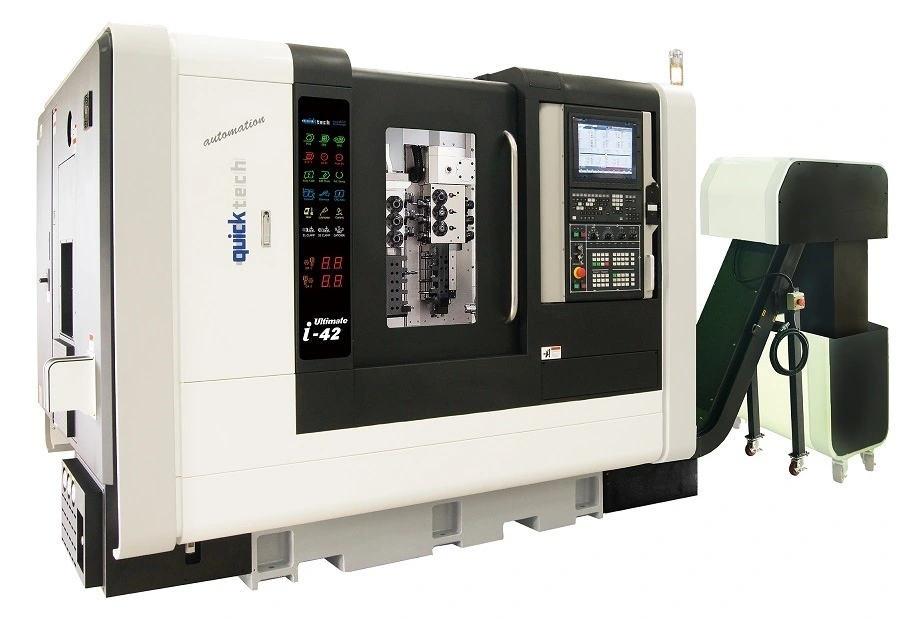

The QuickTECH i-42 / i-60 Ultimate bar processing machines provide complete part machining including complex milling functions. The compact, high precision, high production CNC mill/turn centers are cast from rigid Meehanite iron. Available in both 42 mm (1.65″) and 60 mm (2.36″) bar capacities, the i-42/i-60 features 10 axes, 2 turning spindles, 2 milling spindles, 2 B-axes, and a total capacity of 56 tools. A 4 axis (X,Y,Z,B) gang type vertical tool post serves each C-axis spindle.
ITEM / MODEL I-42
Main Spindle Capacity
Max Bar Working Capacity 1.65″
Max Turning Length 9.8″
Spindle Speed Range (std.) 6,000 RPM
Spindle Motor 15 HP
C-Axis Increment .001°
Sub-Spindle Capacity
Max Bar Working Capacity 1.65″
Max Turning Length 3.94″
Spindle Speed Range 6,000 RPM
Spindle Motor 7.5 HP Integral Motor
C-Axis Increment .001°
Travel and Feed
Rapid Traverse Rate 1,181″/min.
Tooling System (Main)
Tooling Type Gang Tool / Servo Y-Axis / KM-25 Quick Change
Number of Turning Tools 6 O.D. (5 + 1 cut-off) & 5 I.D.
Square Shank Size .75″ (20mm)
Boring Bar Capacity .75″ (ED-20)
B-Axis 360°
B-Axis Index Time .3 Seconds 90° / .6 Seconds 360°
Number of Live Tools 12
Live Tool Spindle Motor 2 HP
Live Tool Spindle Speed 4,000
Live Tool Shank ER-20 Collet
Tooling System (Sub)
Tooling Type Gang Tool / Servo Y-Axis / KM-25 Quick Change
Number of Turning Tools 5 O.D. & 9 I.D.
Square Shank Size .75″ (20mm)
Boring Bar Capacity .75″ (ER-20)
B-Axis 360°
B-Axis Index Time .3 Seconds 90° / 6 Seconds 360°
Number of Live Tools 12
Live Tool Spindle Motor 2 HP
Live Tool Spindle Speed 4,000
Live Tool Shank ER-20 Collet
General
CNC Control Mitsubishi M830S
Machine Dimensions with Chip Conveyor 138″ x 75″ x 75″
Machine Weight 9,240 lbs.
(24) Live tools (ER-20 collets)
(32) Fixed tools
(2) 42mm Collet chucks (60mm collet chuck for i-60 main spindle)
(5) Front O.D. quick change KM-25 tool holder bases
(4) Front I.D. tool holders (ER-20 collets)
(1) Front parting tool holder (3/4” square shank)
(5) Rear O.D. tool change KM-25 tool holder bases
(4) Rear I.D. tool holders (ER-20 collets)
ER-20 collet set (box)
Parts catcher
Parts conveyor
Chip conveyor
Bar feeder interface
400 PSI / 8GPM High pressure coolant pump
75 PSI / 20 GPM Floor coolant pump
Full enclosed machine guards
Auto lubrication system
1 Set of machine and control manuals
